Purchase AD5405, In-stock AD5405 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5405
MFG: ADI
D/C: 09
Description: The AD54051 is a dual CMOS, 12-bit, current output digital- to-analog converter (DAC).This device operates from a 2....
- Table of contents:
AD5405
-
Suppliers
DataSheet
General Description

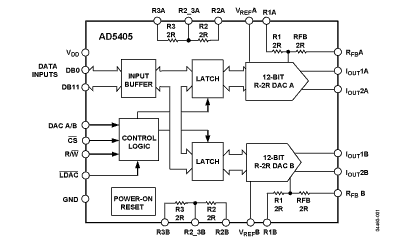

AD5405 General Description
The AD54051 is a dual CMOS, 12-bit, current output digital- to-analog converter (DAC).This device operates from a 2.5 V to 5.5 Vpower supply, making it suited to battery-powered and other applications.
The applied external reference input voltage (VREF) determines the full-scale output current. An integrated feedback resistor ,(RFB) provides temperature tracking and full-scale voltage output when combined with an external I-to-V precision amplifier. Thisdevice also contains all the 4-quadrant resistors necessary for bipolar operation and other configuration modes.This DACutilizes data readback, allowing the user to read the contents of the DAC register via the DB pins. On power-up, theinternalregister and latches are filled with zeros and the DAC outputs are at zero scale.As a result of manufacture with aCMOS submicron process, the device offers excellent 4-quadrant multiplication characteristics, with large signal multiplyingbandwidths of up to 10 MHz.The AD5405 has a 6 mm * 6 mm, 40-lead LFCSP package.
AD5405 Maximum Ratings
VDD to GND.....................................................−0.3 V to +7 V
VREFA, VREFB, RFBA, RFBB to GND.................−12 V to +12 V
IOUT1, IOUT2 to GND..................................... −0.3 V to +7V
Logic Inputs and Output1 ...................− 0.3V to VDD + 0.3V
Operating Temperature Range
Automotive (Y Version).............................−40 to +125
Storage Temperature Range ........... ...... −65 to +150
Junction Temperature ................. ........................... 150
40-lead LFCSP, JA Thermal Impedance ................ 30°C/W
Lead Temperature, Soldering (10 sec.).....................300
IR Reflow, Peak Temperature (< 20 sec.)..................235
VREFA, VREFB, RFBA, RFBB to GND.................−12 V to +12 V
IOUT1, IOUT2 to GND..................................... −0.3 V to +7V
Logic Inputs and Output1 ...................− 0.3V to VDD + 0.3V
Operating Temperature Range
Automotive (Y Version).............................−40 to +125
Storage Temperature Range ........... ...... −65 to +150
Junction Temperature ................. ........................... 150
40-lead LFCSP, JA Thermal Impedance ................ 30°C/W
Lead Temperature, Soldering (10 sec.).....................300
IR Reflow, Peak Temperature (< 20 sec.)..................235
AD5405 Features
On chip 4-quadrant resistors allow flexible output ranges10 MHz multiplying bandwidthFast parallel interface write cycle: 58 MSPS2.5 V to 5.5 V supply operation±10 V reference inputExtended temperature range: −40 to 12540-lead LFCSP packageGuaranteed monotonic4-quadrant multiplicationPower-on resetReadback function.5 A typical current consumption
AD5405 Typical Application
Portable battery-powered applicationsWaveform generatorsAnalog processingInstrumentation applicationsProgrammable amplifiers and attenuatorsDigitally-controlled calibrationProgrammable filters and oscillatorsComposite videoUltrasoundGain, offset, and voltage trimming

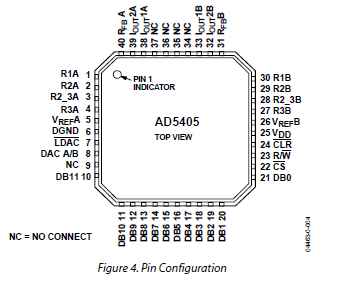

AD5405 Connection Diagram
AD5405
PDF/DataSheet Download
- Datasheet: AD5405
- File Size: 948063 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
