Purchase AD5541, In-stock AD5541 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5541
MFG: ADI
D/C: 09
Description: The AD5541 and AD5542 are single, 16-bit, serial input, voltage output DACs that operate from a single...
- Table of contents:
AD5541
-
Suppliers
DataSheet
General Description
AD5541 General Description
The AD5541 and AD5542 are single, 16-bit, serial input, voltage output DACs that operate from a single 5 V ± 10% supply.
The AD5541 and AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI, MICROWIRE, and DSP interface standards.
These DACs provide 16-bit performance without any adjustments. The DAC output is unbuffered, which reduces power consumption and offset errors contributed to by an output buffer.
The AD5542 can be operated in bipolar mode generating a ±VREF output swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.
The AD5541 and AD5542 are available in an SO package.
AD5541 Maximum Ratings
VDD to AGND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
Digital Input Voltage to DGND . . . . . . 0.3 V to VDD + 0.3 V
VOUT to AGND . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
AGND, AGNDF, AGNDS to DGND . . . . . . . . . 0.3 V to +0.3 V
Input Current to Any Pin Except Supplies . . . . . . . . ±10 mA
Operating Temperature Range
Industrial (A, B, C Versions) . . . . . . . . . . .40°C to +85°C
Commercial (J, L Versions) . . . . . . . . . . . . . . . 0°C to 70°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature, (TJ max) . . . . . . . . .150°C
Package Power Dissipation . . . . . . . . . . . .(TJ max TA)/JA
Thermal Impedance JA
SOIC (SO-8) . . . . . . . . . . . . . . . . . . . . . . . . . . 149.5°C/W
SOIC (R-14) . . . . . . . . . . . . . . . . . . . . . . . . . . . 104.5°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
Digital Input Voltage to DGND . . . . . . 0.3 V to VDD + 0.3 V
VOUT to AGND . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
AGND, AGNDF, AGNDS to DGND . . . . . . . . . 0.3 V to +0.3 V
Input Current to Any Pin Except Supplies . . . . . . . . ±10 mA
Operating Temperature Range
Industrial (A, B, C Versions) . . . . . . . . . . .40°C to +85°C
Commercial (J, L Versions) . . . . . . . . . . . . . . . 0°C to 70°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature, (TJ max) . . . . . . . . .150°C
Package Power Dissipation . . . . . . . . . . . .(TJ max TA)/JA
Thermal Impedance JA
SOIC (SO-8) . . . . . . . . . . . . . . . . . . . . . . . . . . 149.5°C/W
SOIC (R-14) . . . . . . . . . . . . . . . . . . . . . . . . . . . 104.5°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
AD5541 Features
Full 16-Bit Performance
5 V Single Supply Operation
Low Power
Short Settling Time
Unbuffered Voltage Output Capable of Driving 60 kV Loads Directly
SPI™/QSPI™/MICROWIRE™-Compatible Interface Standards
Power-On Reset Clears DAC Output to 0 V (Unipolar Mode)
Schmitt Trigger Inputs for Direct Optocoupler Interface
5 V Single Supply Operation
Low Power
Short Settling Time
Unbuffered Voltage Output Capable of Driving 60 kV Loads Directly
SPI™/QSPI™/MICROWIRE™-Compatible Interface Standards
Power-On Reset Clears DAC Output to 0 V (Unipolar Mode)
Schmitt Trigger Inputs for Direct Optocoupler Interface
AD5541 Typical Application
Digital Gain and Offset Adjustment
Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control
Automatic Test Equipment
Data Acquisition Systems
Industrial Process Control

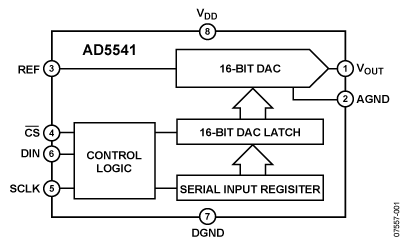

AD5541 Connection Diagram
AD5541
