Purchase AD5543, In-stock AD5543 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5543
MFG: ADI
D/C: 09
Description: The AD5543/AD5553 are precision 16-/14-bit, low power, current output, small form factor digital-to-an...
- Table of contents:
AD5543
-
Suppliers
DataSheet
General Description
AD5543 General Description
The AD5543/AD5553 are precision 16-/14-bit, low power, current output, small form factor digital-to-analog converters.
They are designed to operate from a single 5 V supply with a ±10 V multiplying reference.
The applied external reference VREF determines the full-scale output current. An internal feedback resistor (RFB) facilitates the R-2R and temperature tracking for voltage conversion when combined with an external op amp.
A serial-data interface offers high speed, 3-wire microcontroller compatible inputs using serial data in (SDI), clock (CLK), and chip select (CS).
The AD5543/AD5553 are packaged in ultracompact (3 mm 4.7 mm) MSOP-8 and SOIC-8 packages
AD5543 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 0.3 V, +8 V
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 18 V, +18 V
Logic Inputs to GND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +8 V
V(IOUT) to GND . . . . . . . . . . . . . . . . . . . ... . 0.3 V, VDD + 0.3 V
Input Current to Any Pin except Supplies . . . . . . . . . . . ±50 mA
Package Power Dissipation . . . . . . . . . . . . . . (TJ Max TA )/JA
Thermal Resistance J
8-Lead Surface Mount (MSOP-8) . . . . . . . . .. . . .. . . . 150°C/W
8-Lead Surface Mount (SOIC-8) . . .. . . . . . . . . . . . . . 100°C/W
Maximum Junction Temperature (TJ Max) . . . . . . . . . . . . . 150°C
Operating Temperature Range
Models B, C . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Lead Temperature
RN-8, RM-8 (Vapor Phase, 60 sec) . . . . . . . .. . . . . . . . . . 215°C
RN-8, RM-8 (Infrared, 15 sec) . . . . . . . . . . .. . . . . . . . . 220°C
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 18 V, +18 V
Logic Inputs to GND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +8 V
V(IOUT) to GND . . . . . . . . . . . . . . . . . . . ... . 0.3 V, VDD + 0.3 V
Input Current to Any Pin except Supplies . . . . . . . . . . . ±50 mA
Package Power Dissipation . . . . . . . . . . . . . . (TJ Max TA )/JA
Thermal Resistance J
8-Lead Surface Mount (MSOP-8) . . . . . . . . .. . . .. . . . 150°C/W
8-Lead Surface Mount (SOIC-8) . . .. . . . . . . . . . . . . . 100°C/W
Maximum Junction Temperature (TJ Max) . . . . . . . . . . . . . 150°C
Operating Temperature Range
Models B, C . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Lead Temperature
RN-8, RM-8 (Vapor Phase, 60 sec) . . . . . . . .. . . . . . . . . . 215°C
RN-8, RM-8 (Infrared, 15 sec) . . . . . . . . . . .. . . . . . . . . 220°C
AD5543 Features
16-Bit Resolution AD5543 14-Bit Resolution AD5553 1 LSB DNL 2 LSB INL for AD5543 1 LSB INL for AD5553 Low Noise 12 nV/Hz Low Power, IDD = 10 A 0.5 s Settling Time 4Q Multiplying Reference-Input 2 mA Full-Scale Current 20%, with VREF = 10 V Built-in RFB Facilitates Voltage Conversion 3-Wire Interface Ultracompact MSOP-8 and SOIC-8 Packages
AD5543 Typical Application
Automatic Test Equipment Instrumentation Digitally Controlled Calibration industrial Control PLCs

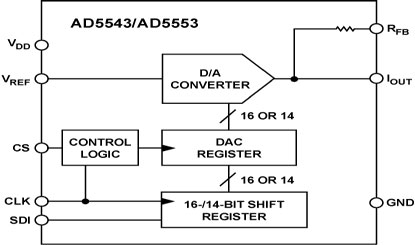

AD5543 Connection Diagram
AD5543
