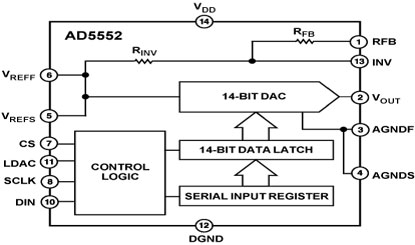

AD5552

V_DD to AGND . . . . . . . . . . . . . . . . . . . . .  . . . 0.3 V to +6 V
Digital Input Voltage to DGND . . . . . . 0.3 V to V_DD + 0.3 V
V_OUT to AGND . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3 V
AGND, AGNDF, AGNDS to DGND . . . .. .. . . . 0.3 V to +0.3 V
Input Current to Any Pin Except Supplies . . . . . . . . ±10 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . .  . . 40°C to +85°C
Storage Temperature Range . . . . . .  . . 65°C to +150°C
Maximum Junction Temperature, (T _{J max)} . . . . .. . . . 150°C
Package Power Dissipation . . . . . . . . . . . (T _{J max} TA)/_JA
Thermal Impedance _JA
SOIC (SO-8) . . . . . . . . . . . . . . . . . . . . . .. . . . .. . 149.5°C/W
SOIC (R-14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104.5°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . .. . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . .  . . . . . . .. . . 220°C
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
