Purchase AD5645R, In-stock AD5645R From SeekIC.

MFG:ADI  D/C:09

AD5645R Product Image

AD5 Series Datasheet download

Five Points

Part Number: AD5645R



MFG: ADI



D/C: 09

Description: The AD5625R/AD5645R/AD5665R and AD5625/AD5665 members of the nanoDAC family are low power, quad, 12-/ 14-/16-bit, buffered voltage-out ...


Urgent Purchase

AD5645R General Description



The AD5625R/AD5645R/AD5665R and AD5625/AD5665 members of the nanoDAC family are low power, quad, 12-/ 14-/16-bit, buffered voltage-out DACs with/without an on-chip reference. All devices operate

AD5645R Maximum Ratings

Resolution (Bits) 14bit
DAC Settling Time 3.5s
# DAC Outputs 4
DAC Type Voltage Out
DAC Input Format I2C/Ser 2-wire,Ser
Output FSR (Uni 1.25V),(Uni 2.5V),(Uni Vref)
Ref Int/Ext Int/Ext
Supply Vnom Single(+2.7 to +5.5),Single(+3),Single(+3.3),Single(+5)
Package CSP,SOP

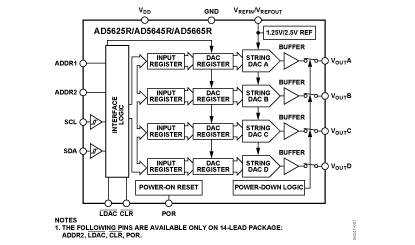

AD5645R Connection Diagram

AD5645R Connection Diagram

AD5645R datasheet
