Part Number: AD5725



MFG: ADI



D/C: 09

Description: The AD5725 is a quad, 12-bit, parallel input, voltage output digital-to-analog converter that offers guaranteed monotonicity, integral non...


Urgent Purchase

AD5725 General Description


The AD5725 is a quad, 12-bit, parallel input, voltage output digital-to-analog converter that offers guaranteed monotonicity, integral nonlinearity (INL) of ±0.5 LSB maximum and 10 s maximum settling

AD5725 Maximum Ratings

Resolution (Bits) 12bit
DAC Update Rate n/a
DAC Settling Time 7s
# DAC Outputs 4
DAC Type Voltage Out
DAC Input Format Par
Output FSR User Def. Range/Offset
Ref Int/Ext Ext
Supply Vnom Dual(+12, -12),Dual(+15, -15),Dual(+5, -5),Single(+12),Single(+15),Single(+5)
Pwr Diss 270mW
Package SOP

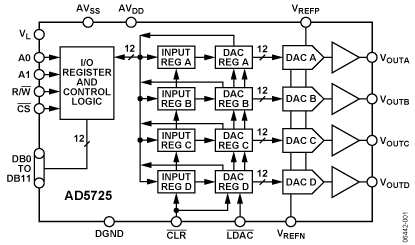

AD5725 Connection Diagram

AD5725 Connection Diagram
