AD626

Features: Pin Selectable Gains of 10 and 100True Single Supply OperationSingle Supply Range of +2.4 V to +10 VDual Supply Range of 6 1.2 V to 6 6 VWide Output Voltage Range of 30 mV to 4.7 VOptional Low-Pass FilteringExcellent DC PerformanceLow Input Offset Voltage: 500 m V maxLarge Common-Mode Ra...

product image

AD626 Picture
See larger image
SeekIC No. : 004269621 Detail

AD626: Features: Pin Selectable Gains of 10 and 100True Single Supply OperationSingle Supply Range of +2.4 V to +10 VDual Supply Range of 6 1.2 V to 6 6 VWide Output Voltage Range of 30 mV to 4.7 VOptional...

AD626 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD626
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Pin Selectable Gains of 10 and 100
True Single Supply Operation
Single Supply Range of +2.4 V to +10 V
Dual Supply Range of 6 1.2 V to 6 6 V
Wide Output Voltage Range of 30 mV to 4.7 V
Optional Low-Pass Filtering
Excellent DC Performance
Low Input Offset Voltage: 500 m V max
Large Common-Mode Range: 0 V to +54 V
Low Power: 1.2 mW (VS= +5 V)
Good CMR of 90 dB typ
AC Performance
Fast Settling Time: 24 ms (0.01%)
Includes Input Protection
Series Resistive Inputs (RIN= 200 kV)
RFI Filters Included
Allows 50 V Continuous Overload




Application

Current Sensing
Interface for Pressure Transducers, Position Indicators,
Strain Gages, and Other Low Level Signal Sources

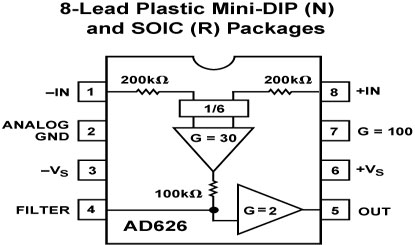

Pinout

AD626 Diagram




Specifications

SupplyVoltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .+36V
InternalPowerDissipation2.
Peak Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .60 V
Maximum Reversed Supply Voltage Limit . . . . . . . .. ... . . .34V
Output Short Circuit Duration . . . . . . . . . . . . . . .... . .Indefinite
Storage Temperature Range (N, R) . . . . . . .65°C to +125°C
Operating Temperature Range
AD626A/B . . . . . . . . . . . . . . . . . . . . . . ...... . .40°C to +85°C
Lead Temperature Range (Soldering60sec) . .... . . . . . .+300°C

Single/Dual Supply Single/Dual
Voltage Supply (Vmax) ±6V
Gain Setting Method Pin
Gain Range (min to max) 90
Bandwidth G=10 (kHz typ) 100kHz
CMRR (dB) 66dB
Vnoise RTI 1-10 Hz Vp-p 2V p-p
Temperature Range -40 to +85
Gain Error (%) max +1%
Supply Current 2mA
Package DIP,SOIC
Vosi (V) 500V





Description

The AD626 is a low cost, true single supply differential ampli- fier designed for amplifying and low-pass filtering small differen-tial voltages from sources having a large common-mode voltage.The AD626 can operate from either a single supply of +2.4 V to+10 V, or dual supplies of ±1.2 V to ±6 V. The input common-mode range of this amplifier is equal to 6 (+VS 1 V) which provides a +24 V CMR while operating from a +5 V supply.Furthermore, the AD626 features a CMR of 90 dB typ.

The amplifier's inputs are protected against continuous overload of up to 50 V, and RFI filters are included in the attenuatornetwork. The output range is +0.03 V to +4.9 V using a +5 Vsupply. The amplifier provides a preset gain of 10, but gains be-tween 10 to 100 can be easily configured with an external resis-tor. Furthermore, a gain of 100 is available by connecting the G= 100 pin to analog ground. The AD626 also offers low-pass filter capability by connecting a capacitor between the filter pin and analog ground.The AD626A and AD626B operate over the industrial tempera-ture range of 40°C to +85°C. The AD626 is available in two 8-lead packages: a plastic mini-DIP and SOIC.
