Purchase AD680, In-stock AD680 From SeekIC.
MFG:ADI D/C:09
Part Number: AD680
MFG: ADI
D/C: 09
Description: The AD680 is a bandgap voltage reference which provides a 2.5 V output from inputs between 4.5 V and 36 V. The architecture of the AD68...
- Table of contents:
AD680
-
Suppliers
DataSheet
General Description
AD680 General Description
The AD680 is a bandgap voltage reference which provides a 2.5 V output from inputs between 4.5 V and 36 V. The architecture of the AD680 enables the reference to be operated at a very low
AD680 Maximum Ratings
| Vout | 2.5 |
| Initial Accuracy (%) | 0.2 |
| Ref Out TC (ppm/C) | 20ppm/C |
| Supply Voltage Range (V) | +4.5 to +36 |
| Supply Current | 250A |
| Ref Output Current (mA) | 10mA |
| 0.1-10 Hz Noise (V p-p) | 8V p-p |
| Temp Range(s) | -40 to +85,0 to +70 |
| Package | DIP,SOIC,TO-92 |
| Reference Type | Series |

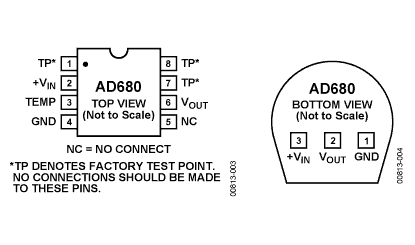

AD680 Connection Diagram
AD680
PDF/DataSheet Download
- Datasheet: AD680
- File Size: 591922 KB
- Manufacturer:
- Click here to Download
