Part Number: AD711

MFG: ADI

D/C: 09

Description: The AD711 is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. ...

AD711 General Description

The AD711 is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps.

The superior ac and dc performance of this op amp makes it suitable for active filter applications. With a slew rate of 16 V/µs and a settling time of 1 µs to ±0.01%, the AD711 is ideal as a buffer for 12-bit D/A and A/D Converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier. The combination of excellent noise performance and low input current also make the AD711 useful for photo diode preamps. Common-mode rejection of 88 dB and open loop gain of 400 V/mV ensure 12-bit performance even in high-speed unity gain buffer circuits.The AD711 is pinned out in a standard op amp configuration and is available in seven performance grades. The AD711J and AD711K are rated over the commercial temperature range of 0°C to +70°C. The AD711A, AD711B and AD711C are rated over the industrial temperature range of 40°C to +85°C. The AD711S and AD711T are rated over the military temperature range of 40°C to +125°C and are available processed to MIL- STD-883B, Rev. C.

AD711 Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Internal Power Dissipation². . . . . . . . . . . . . . . . . . . . . 500 mW
Input Voltage³. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . +VS and VS
Storage Temperature Range (Q, H) . . . . . . .65°C to +150°C
Storage Temperature Range (N) . . . . . . . . .65°C to +125°C
Operating Temperature Range
AD711J/K . . . . . . . . . . . . . . . . . . . . . . . . . . .     0°C to +70°C
AD711A/B/C . . . . . . . . . . . . . . . . . . . . . . . .   40°C to +85°C
AD711S/T . . . . . . . . . . . . . . . . . . . . . . . . .   55°C to +125°C
Lead Temperature Range (Soldering 60 sec) . . . . . . .+300°C

AD711 Features

Enhanced Replacements for LF411 and TL081
AC PERFORMANCE
Settles to 60.01% in 1.0 ms
3 MHz min Unity Gain Bandwidth (AD711J)
DC PERFORMANCE
0.25 mV max Offset Voltage: (AD711C)
Available in Plastic Mini-DIP, Plastic SO, Hermetic Cerdip, and Hermetic Metal Can Packages
MIL-STD-883B Parts Available
Available in Tape and Reel in Accordance with
EIA-481A Standard
Surface Mount (SOIC)
Dual Version: AD712
Quad Version: AD713

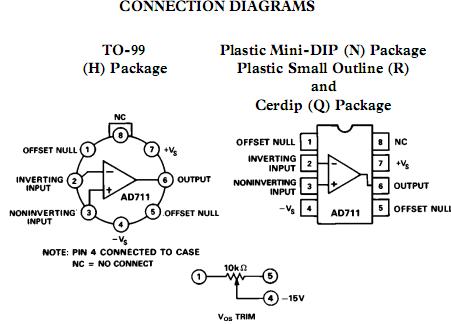

AD711 Connection Diagram

AD711 datasheet

AD711
PDF/DataSheet Download

Datasheet: AD711
File Size: 536422 KB
Manufacturer: AD [Analog Devices]
Click here to Download
