Part Number: AD7148



MFG: ADI



D/C: 09

Description: The AD7148 CapTouch? Programmable Controller is designed for use with capacitance sensors implementing functions such as buttons, scroll b...


Urgent Purchase

AD7148 General Description


The AD7148 CapTouch? Programmable Controller is designed for use with capacitance sensors implementing functions such as buttons, scroll bars, and wheels. The sensors need only one PCB layer, enabling

AD7148 Maximum Ratings

Resolution (Bits) 16bit
T-Put Rate 4SPS
# Chan 8
Supply V Multi(+3.3Anlg, +3.3Dig)
Pwr Diss (max) 3.3mW
Sleep Pwr Diss 24.8W
Ain Range ± 8 pF (Delta C)
Ref Int/Ext Int
Product Description Programmable Touch Controller for Single Electrode Capacitance Sensors

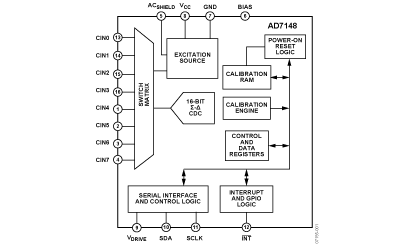

AD7148 Connection Diagram

AD7148 Connection Diagram
