Five Points

Part Number: AD7191



MFG: ADI



D/C: 09

Description: The AD7191 is a low noise, complete analog front end for highprecision measurement applications. It contains a low noise,24-bit sigma-delt...


Urgent Purchase

AD7191 General Description


The AD7191 is a low noise, complete analog front end for highprecision measurement applications. It contains a low noise,24-bit sigma-delta (-) ADC. The on-chip low noise gainstage means that

AD7191 Maximum Ratings

Resolution (Bits) 24bit
T-Put Rate 120SPS
# Chan 3
Supply V Single(+3.3),Single(+5)
Pwr Diss 22.5mW
Interface Ser,SPI
Ain Range Bip (Vref)/(PGA Gain)
SNR (dB) n/a
Pkg Type SOP

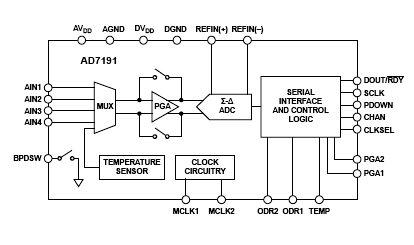

AD7191 Connection Diagram

AD7191 Connection Diagram

AD7191 datasheet
