Part Number: AD7226



MFG: TOSHIBA

Package Cooled: DIP

D/C: 671

Description: The AD7226 contains four 8-bit voltage-output digital-to- analog converters, with output buffer amplifiers and interfac...


Urgent Purchase

AD7226 General Description


The AD7226 contains four 8-bit voltage-output digital-to- analog converters, with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve full specified performance for the part.

Each D/A converter includes an output buffer amplifier capable of driving up to 5 mA of output current. The amplifiers' offsets are laser-trimmed during manufacture, thereby eliminating any requirement for offset nulling. Specified performance is guaranteed for input reference voltages from +2 V to +12.5 V with dual supplies. The part is also specified for single supply operation at a reference of +10 V. The AD7226 is fabricated in an all ion-implanted high speed Linear Compatible CMOS (LC2 MOS) process which has been specifically developed to allow high speed digital logic circuits and precision analog circuits to be integrated on the same chip.

AD7226 Maximum Ratings

VDD to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +17 V
VSS to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V, VDD
VSS to DGND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V, VDD
VDD to VSS  . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V, +24 V
AGND to DGND  . . . . . . . . . . . . . . . . . . . . . . . .     0.3 V, VDD
Digital Input Voltage to DGND  . . . . . . .   0.3 V, VDD + 0.3 V
VREF to AGND  . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V, VDD
VOUT to AGND1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . VSS, VDD
Power Dissipation (Any Package) to +75°C . . . . . . . .500 mW
Derates above 75°C by  . . . . . . . . . . . . . . . . . . . . 2.0 mW/°C

AD7226 Features

Four 8-Bit DACs with Output Amplifiers
Skinny 20-Pin DIP, SOIC and 20-Terminal Surface Mount Packages
Microprocessor Compatible
TTL/CMOS Compatible
No User Trims
Extended Temperature Range Operation
Single Supply Operation Possible

AD7226 Typical Application

Process Control
Automatic Test Equipment
Automatic Calibration of Large System Parameters,
e.g., Gain/Offset

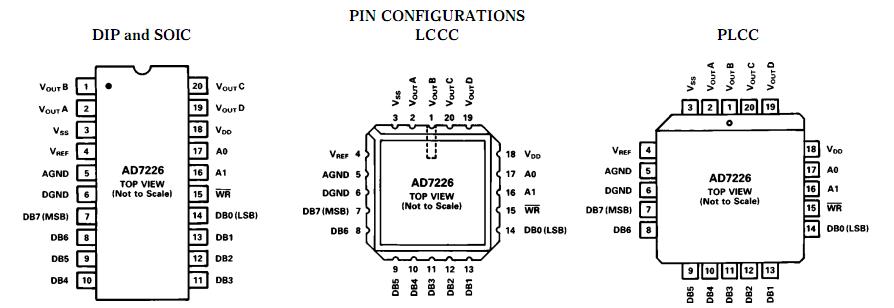

AD7226 Connection Diagram

AD7226 Connection Diagram
