General Description
AD73322L General Description
The AD73322L is a dual front-end processor for general pur-se applications including speech and telephony. It features two 16-bit A/D conversion channels and two 16-bit D/A con-version channels. Each channel provides 78 dB signal-to-noise ratio over a voiceband signal bandwidth. It also features an input-to-output gain network in both the analog and digital domains. This is featured on both codecs and can be used for impedance matching or scaling when interfacing to Subscriber Line Interface Circuits (SLICs).The AD73322L is particularly suitable for a variety of applica-
tions in the speech and telephony area, including low bit rate,high quality compression,spee chenhancement,
recognition and synthesis. The low group delay characteristic of the part makes it suitable for single or multichannel active control applications.
AD73322L Maximum Ratings
AVDD, DVDD to GND . . . . . . . . . . . . . . . 0.3 V to +4.6 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . 0.3 V to (DVDD + 0.3 V)
Analog I/O Voltage to AGND . . . 0.3 V to (AVDD + 0.3 V)
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . 40°C to +85°C
Extended (Y Version) . . . . . . . . . . . . . . . . 40°C to +105°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
SOIC, JA Thermal Impedance . . . . . . . . . . . . . . . 71.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
LQFP, JA Thermal Impedance . . . . . . . . . . . . . . . 53.2°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
TSSOP, JA Thermal Impedance . . . . . . . . . . . . . . 97.9°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215 °C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 °C
AGND to DGND . . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . 0.3 V to (DVDD + 0.3 V)
Analog I/O Voltage to AGND . . . 0.3 V to (AVDD + 0.3 V)
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . 40°C to +85°C
Extended (Y Version) . . . . . . . . . . . . . . . . 40°C to +105°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . 150°C
SOIC, JA Thermal Impedance . . . . . . . . . . . . . . . 71.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
LQFP, JA Thermal Impedance . . . . . . . . . . . . . . . 53.2°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
TSSOP, JA Thermal Impedance . . . . . . . . . . . . . . 97.9°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . 215 °C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 °C
AD73322L Features
Two 16-Bit A/D Converters
Two 16-Bit D/A Converters
Programmable Input/Output Sample Rates
78 dB ADC SNR
78 dB DAC SNR
64 kS/s Maximum Sample Rate
90 dB Crosstalk
Low Group Delay (25s Typ per ADC Channel,
50 s Typ per DAC Channel)
Programmable Input/Output Gain
Flexible Serial Port which Allows Up to Four Dual
Codecs to be Connected in Cascade Giving Eight
I/O Channels
Single (2.7 V to 3.3 V) Supply Operation
50 mW Typ Power Consumption at 3.0 V
Temperature Range: 40C to +105C
On-Chip Reference
28-Lead SOIC, TSSOP, and 44-Lead LQFP Packages
APPLICATIONS
General-Purpose Analog I/O
Speech Processing
Cordless and Personal Communications
Telephony
Active Control of Sound and Vibration
Data Communications
Wireless Local Loop
Two 16-Bit D/A Converters
Programmable Input/Output Sample Rates
78 dB ADC SNR
78 dB DAC SNR
64 kS/s Maximum Sample Rate
90 dB Crosstalk
Low Group Delay (25s Typ per ADC Channel,
50 s Typ per DAC Channel)
Programmable Input/Output Gain
Flexible Serial Port which Allows Up to Four Dual
Codecs to be Connected in Cascade Giving Eight
I/O Channels
Single (2.7 V to 3.3 V) Supply Operation
50 mW Typ Power Consumption at 3.0 V
Temperature Range: 40C to +105C
On-Chip Reference
28-Lead SOIC, TSSOP, and 44-Lead LQFP Packages
APPLICATIONS
General-Purpose Analog I/O
Speech Processing
Cordless and Personal Communications
Telephony
Active Control of Sound and Vibration
Data Communications
Wireless Local Loop

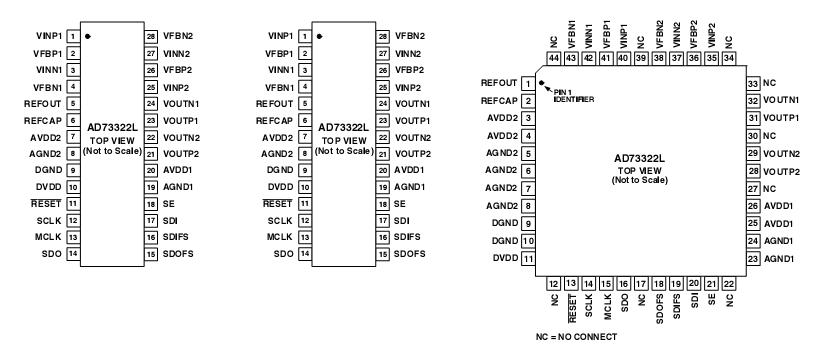

AD73322L Connection Diagram
AD73322L
PDF/DataSheet Download
- Datasheet: AD73322L
- File Size: 447715 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
