AD73360

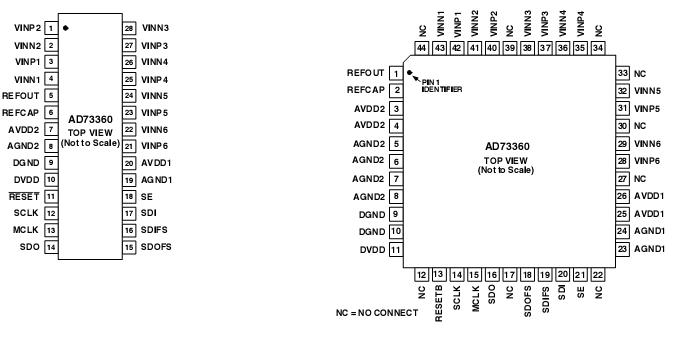

The AD73360 is a six-input channel analog front-end processorfor general purpose applications including industrial powermetering or multichannel analog inputs. It features six 16-bitA/D conversion channels each of which provide 77 dB signal-to-noise ratio over a dc to 4kHz signal bandwidth. Each channelalso features a programmable input gain amplifier (PGA) withgain settings in eight stages from 0 dB to 38 dB.The AD73360 is particularly suitable for industrial power me-tering as each channel samples synchronously, ensuring that thereis no (phase) delay between the conversions. The AD73360 alsofeatures low group delay conversions on all channels.An on-chip reference voltage is included and is programmableto accommodate either 3 V or 5 V operation.The sampling rate of the device is programmable with foureparate settings offering 64 kHz, 32 kHz, 16 kHz and 8 kHzsampling rates (from a master clock of 16.384 MHz).A serial port (SPORT) allows easy interfacing of single or cas-caded devices to industry standard DSP engines. The SPORTtransfer rate is programmable to allow interfacing to both fastand slow DSP engines.The AD73360 is available in 28-lead SOIC and 44-lead TQFPpackages.
