Description: The AD74111 is a front-end processor for general-purpose audio and voice applications. It features a m...
- Table of contents:
AD74111
-
Suppliers
DataSheet
General Description
AD74111 General Description
The AD74111 is a front-end processor for general-purpose audio and voice applications. It features a multibit - A/D conversion channel and a multibit - D/A conversion channel. The ADC channel provides >67 dB THD+N and the DAC channel provides >88 dB THD+N, both over an audio signal bandwidth.
The AD74111 is particularly suitable for a variety of applications where mono input and output channels are required, including audio sections of digital video camcorders, portable personal audio devices, and telematic applications.
Its high quality performance also makes it suitable for speech and telephony applications such as speech recognition and synthesis, and modern feature phones.
An on-chip reference voltage is included but can be powered down and bypassed by an external reference source if required. The AD74111 offers sampling rates that, depending on MCLK selection and MCLK divider ratio, range from 8 kHz in the voiceband range to 48 kHz in the audio range. The AD74111 is available in a 16-lead TSSOP package option and is specified for the automotive temperature range of 40°C to +105°C.
AD74111 Maximum Ratings
AVDD, DVDD2 to AGND, DGND . . . . . . . 0.3 V to +3.0 V
DVDD1 to AGND, DGND . . . . . . . . . . . . . 0.3 V to +4.5 V
AGND to DGND . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . 0.3 V to DVDD1 + 0.3 V
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . .40°C to +105°C
Storage Temperature Range . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . 150°C
16-Lead TSSOP, JA Thermal Impedance . . . . .150.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . .. 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
DVDD1 to AGND, DGND . . . . . . . . . . . . . 0.3 V to +4.5 V
AGND to DGND . . . . . . . . . . . . . . . . . . . 0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . 0.3 V to DVDD1 + 0.3 V
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . .40°C to +105°C
Storage Temperature Range . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . 150°C
16-Lead TSSOP, JA Thermal Impedance . . . . .150.4°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . .. 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
AD74111 Features
`2.5 V Mono Audio Codec with 3.3 V Tolerant
`Digital Interface
`Supports 8 kHz to 48 kHz Sample Rates
`Supports 16-/20-/24-Bit Word Lengths
`Multibit - Modulators with
`"Perfect Differential Linearity Restoration" for
`Reduced Idle Tones and Noise Floor
`Data Directed Scrambling DAC Least Sensitive to Jitter
`Performance (20 Hz to 20 kHz)
85 dB ADC Dynamic Range
93 dB DAC Dynamic Range
`Programmable ADC Gain
`On-Chip Volume Control for DAC Channel
`Software Controllable Clickless Mute
`Supports 256 * fS, 512 * fS, and 768 * fS Master Mode Clocks
`Master Clock Prescaler for Use with DSP Master Clocks
`On-Chip Reference
`16-Lead TSSOP Package
`Digital Interface
`Supports 8 kHz to 48 kHz Sample Rates
`Supports 16-/20-/24-Bit Word Lengths
`Multibit - Modulators with
`"Perfect Differential Linearity Restoration" for
`Reduced Idle Tones and Noise Floor
`Data Directed Scrambling DAC Least Sensitive to Jitter
`Performance (20 Hz to 20 kHz)
85 dB ADC Dynamic Range
93 dB DAC Dynamic Range
`Programmable ADC Gain
`On-Chip Volume Control for DAC Channel
`Software Controllable Clickless Mute
`Supports 256 * fS, 512 * fS, and 768 * fS Master Mode Clocks
`Master Clock Prescaler for Use with DSP Master Clocks
`On-Chip Reference
`16-Lead TSSOP Package
AD74111 Typical Application
·Digital Video Camcorders (DVC)
·Portable Audio Devices (Walkman®, PDAs, and so on)
·Audio Processing
·Voice Processing
·Telematic Systems
·General-Purpose Analog I/O
·Portable Audio Devices (Walkman®, PDAs, and so on)
·Audio Processing
·Voice Processing
·Telematic Systems
·General-Purpose Analog I/O

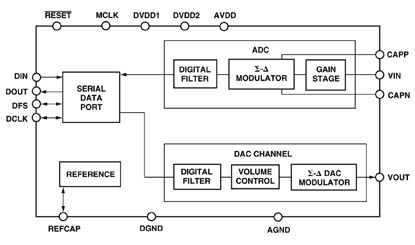

AD74111 Connection Diagram
AD74111
PDF/DataSheet Download
- Datasheet: AD74111
- File Size: 981448 KB
- Manufacturer: AD
- Click here to Download
- ·AD7001
- AD [Analog Devices]
- LC2MOS GSM Baseband I/O Port
- 634418 KB
- ·AD7001AS
- AD [Analog Devices]
- LC2MOS GSM Baseband I/O Port
- 634418 KB
- ·AD7002
- AD [Analog Devices]
- LC2MOS GSM Baseband I/O Port
- 466516 KB
- ·AD7002AS
- AD [Analog Devices]
- LC2MOS GSM Baseband I/O Port
- 466516 KB
- ·AD7008
- AD [Analog Devices]
- CMOS DDS Modulator
- 517485 KB
- ·AD7008/PCB
- AD [Analog Devices]
- CMOS DDS Modulator
- 517485 KB
- ·AD7008AP20
- AD [Analog Devices]
- CMOS DDS Modulator
- 517485 KB
- ·AD7008JP50
- AD [Analog Devices]
- CMOS DDS Modulator
- 517485 KB
