AD7417

Features: 10-Bit ADC with 15 s and 30 us Conversion TimesSingle and Four Single-Ended Analog Input ChannelsOn-Chip Temperature Sensor: 40 to +125On-Chip Track-and-HoldOvertemperature IndicatorAutomatic Power-Down at the End of a ConversionWide Operating Supply Range: 2.7 V to 5.5 VI2C®Compatib...

product image

AD7417 Picture
See larger image
SeekIC No. : 004270162 Detail

AD7417: Features: 10-Bit ADC with 15 s and 30 us Conversion TimesSingle and Four Single-Ended Analog Input ChannelsOn-Chip Temperature Sensor: 40 to +125On-Chip Track-and-HoldOvertemperature IndicatorAutoma...

AD7417 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7417
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

10-Bit ADC with 15 s and 30 us Conversion Times
Single and Four Single-Ended Analog Input Channels
On-Chip Temperature Sensor: 40 to +125
On-Chip Track-and-Hold
Overtemperature Indicator
Automatic Power-Down at the End of a Conversion
Wide Operating Supply Range: 2.7 V to 5.5 V
I2C®Compatible Serial Interface
Selectable Serial Bus Address Allows Connection of upto Eight AD7416/AD7417s to a Single Bus
AD7416 Is a Superior Replacement for LM75




Application

Data Acquisition with Ambient Temperature Monitoring
Industrial Process Control
Automotive
Battery-Charging Applications
Personal Computers




Pinout

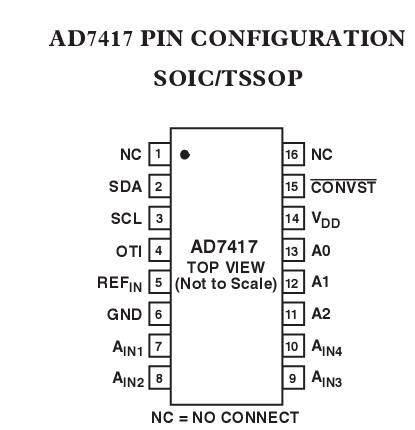

Connection Diagram

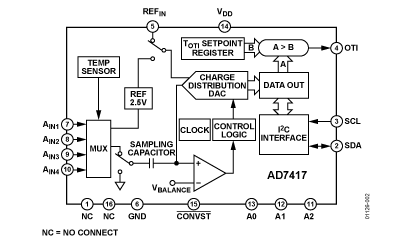

AD7417 Diagram




Specifications

(TA = 25°C, unless otherwise noted.)
VDD to AGND . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to +7 V
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Analog Input Voltage to AGND
AIN1 to AIN4 . . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Reference Input Voltage to AGND2 . .0.3 V to VDD + 0.3 V
Digital Input Voltage to DGND . . . . . 0.3 V to VDD + 0.3 V
Digital Output Voltage to DGND . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range
A Version . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +125
B Version . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature Range . . . . . . . . . . . 65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . 150
TSSOP, Power Dissipation . . . . . . . . . . . . . . . . . . . . 450 mW
QJA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 120/W
Lead Temperature, Soldering . . . . . . . . . . . . . . . . . .. . 260
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . .. . 215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .220
16-Lead SOIC Package, Power Dissipation . . . . . . . .450 mW
QJA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . 100/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . .. . 215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 220
8-Lead SOIC Package, Power Dissipation . . . . . . . . . 450 mW
QJA Thermal Impedance . . . . . . . . . . . . . . . . . . . . .. 157/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . .. .. 215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. 220
MSOP Package, Power Dissipation . . . . . . . . . . . . . . 450 mW
QJAThermal Impedance . . . . . . . . . . . . . . . . . . . .. . 206 /W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . .... 215
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . ... . 220

Output Type Digital
Sensor Output I2C ?
Temp Res(°C/LSB) 0.25°C/LSB
Supply Voltage Range +2.7V to +5.5V
Temp Range(s) -40 to +125





Description

The AD7417 and AD7418 are 10-bit, 4-channel and single-channel ADCs with an on-chip temperature sensor thatcan operate from a single 2.7 V to 5.5 V power supply. Thedevices contain a 15 s successive approximation converter, a5-channel multiplexer, a temperature sensor, a clock oscilla-tor, a track-and-hold, and a reference (2.5 V). The AD7416
is a temperature-monitoring only device in an 8-lead package.

The temperature sensor AD7417 and AD7418 on the parts can be accessed via multi-plexer Channel 0. When Channel 0 is selected and a conversionis initiated, the resulting ADC code at the end of the conversiongives a measurement of the ambient temperature (±1 @ 25).On-chip registers can be programmed with high and low tem-perature limits, and anopen-drain overtemperature indicator(OTI) output is provided, which becomes active when a pro-grammed limit isexceeded.

A configuration register AD7417 and AD7418 allows programming of the sense of theOTI output (active high or active low) and itsoperating mode(comparator or interrupt). A programmable fault queue counterallows the number of out-of-limit measurements that must occurbefore triggering the OTI output to be set to prevent spurioustriggering of the OTI output in noisy environments.
