Part Number: AD7524M
Description: The AD7524M is an Advanced LinCMOS(TM) 8-bit digital-to-analog converter (DAC) designed for eas...
- Table of contents:
AD7524M
-
Suppliers
DataSheet
General Description
AD7524M General Description
The AD7524M is an Advanced LinCMOS(TM) 8-bit digital-to-analog converter (DAC) designed for easy interface to most popular microprocessors.
The AD7524M is an 8-bit multiplying DAC with input latches and with a load cycle similar to the write cycle of a random access memory. Segmenting the high-order bits minimizes glitches during changes in the most-significant bits, which produce the highest glitch impulse. The AD7524M provides accuracy to 1/2 LSB without the need for thin-film resistors or laser trimming, while dissipating less than 5 mW typically.
Featuring operation from a 5-V to 15-V single supply, the AD7524M interfaces easily to most microprocessor buses or output ports. Excellent multiplying (2 or 4 quadrant) makes the AD7524M an ideal choice for many microprocessor-controlled gain-setting and signal-control applications.
The AD7524M is characterized for operation from 55°C to 125°C.
AD7524M Maximum Ratings
Supply voltage range, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 17 V
Voltage between RFB and GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 V
Digital input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to V +0.3 V
Reference voltage range, Vref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±25 V
Peak digital input current, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 10 A
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . .55 to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to 150
Case temperature for 60 seconds, TC: FK package . . . . . . . . . . . . . . . . . . ... . 260
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package . . 300
Voltage between RFB and GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25 V
Digital input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to V +0.3 V
Reference voltage range, Vref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±25 V
Peak digital input current, II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 10 A
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . .55 to 125
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . .65 to 150
Case temperature for 60 seconds, TC: FK package . . . . . . . . . . . . . . . . . . ... . 260
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package . . 300
AD7524M Features
*Advanced LinCMOS(TM) Silicon-Gate Technology
*Easily interfaced to Microprocessors
*On-Chip Data Latches
*Monotonicity Over Entire A/D Conversion Range
*Segmented High-Order Bits Ensure Low-Glitch Output
*Designed to Be interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524
*Fast Control Signaling for Digital Signal Processor Applications Including Interface With SMJ320
*Easily interfaced to Microprocessors
*On-Chip Data Latches
*Monotonicity Over Entire A/D Conversion Range
*Segmented High-Order Bits Ensure Low-Glitch Output
*Designed to Be interchangeable With Analog Devices AD7524, PMI PM-7524, and Micro Power Systems MP7524
*Fast Control Signaling for Digital Signal Processor Applications Including Interface With SMJ320

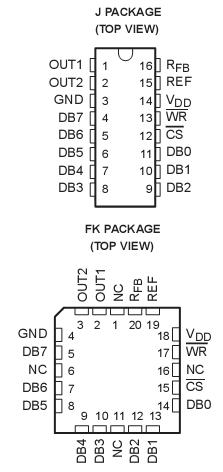

AD7524M Connection Diagram
AD7524M
PDF/DataSheet Download
- Datasheet: AD7524M
- File Size: 138213 KB
- Manufacturer:
- Click here to Download
