Part Number: AD7534
MFG: ADI
D/C: 09
Description: The AD7534 is a 14-bit monolithic CMOS D/A converter which uses thin-film resistors and laser trimming to achieve excellent linearity....
- Table of contents:
AD7534
-
Suppliers
DataSheet
General Description
AD7534 General Description
The AD7534 is a 14-bit monolithic CMOS D/A converter which uses thin-film resistors and laser trimming to achieve excellent linearity.
The device is configured to accept right-justified data
AD7534 Maximum Ratings
| Resolution (Bits) | 14bit |
| DAC Update Rate | 667kSPS |
| DAC Settling Time | 1.5s |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Byte |
| Output FSR | (-Vref),(Bip Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Dual(+12, -0.2 to -0.5),Dual(+15, -0.2 to -0.5) |
| Pwr Diss | 45mW |
| Package | DIP,LCC |

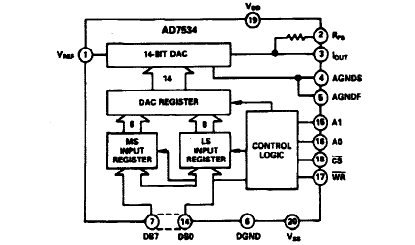

AD7534 Connection Diagram
AD7534
