Purchase AD7541, In-stock AD7541 From SeekIC.
MFG:AD Package Cooled:DIP
Part Number: AD7541
MFG: AD
Package Cooled: DIP
Description: The AD7541 is a monolithic, low cost, high performance, 12-bit accurate, multiplying digital-to-analog...
- Table of contents:
AD7541
-
Suppliers
DataSheet
General Description
AD7541 General Description
The AD7541 is a monolithic, low cost, high performance, 12-bit accurate, multiplying digital-to-analog converter (DAC).
Intersil' wafer level laser-trimmed thin-film resistors on CMOS circuitry provide true 12-bit linearity with TTL/CMOS compatible operation.
Special tabbed-resistor geometries (improving time stability), full input protection from damage due to static discharge by diode clamps to V+ and ground, large IOUT1 and IOUT2 bus lines (improving superposition errors) are some of the features offered by Intersil AD7541.
Pin compatible with AD7521, this DAC provides accurate four quadrant multiplication over the full military temperature range.
AD7541 Maximum Ratings
Supply Voltage (V+ to GND). . . . . . . . . . . . . . . . . . . . . . . . . . . +17V
VREF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V
Digital Input Voltage Range . . . . . . . . . . . . . . . . . . . . . . V+ to GND
Output Voltage Compliance . . . . . . . . . . . . . . . . . . . . -100mV to V+
Thermal Resistance (Typical, Note 1) JA (oC/W)
PDIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150oC
Maximum Storage Temperature . . . . . . . . . . . . . . . .-65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . . 300oC
VREF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±25V
Digital Input Voltage Range . . . . . . . . . . . . . . . . . . . . . . V+ to GND
Output Voltage Compliance . . . . . . . . . . . . . . . . . . . . -100mV to V+
Thermal Resistance (Typical, Note 1) JA (oC/W)
PDIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150oC
Maximum Storage Temperature . . . . . . . . . . . . . . . .-65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . . 300oC
AD7541 Features
• 12-Bit Linearity 0.01%
• Pretrimmed Gain
• Low Gain and Linearity Tempcos
• Full Temperature Range Operation
• Full Input Static Protection
• TTL/CMOS Compatible
• +5V to +15V Supply Range
• 20mW Low Power Dissipation
• Current Settling Time 1µs to 0.01% of FSR
• Four Quadrant Multiplication
• Pretrimmed Gain
• Low Gain and Linearity Tempcos
• Full Temperature Range Operation
• Full Input Static Protection
• TTL/CMOS Compatible
• +5V to +15V Supply Range
• 20mW Low Power Dissipation
• Current Settling Time 1µs to 0.01% of FSR
• Four Quadrant Multiplication

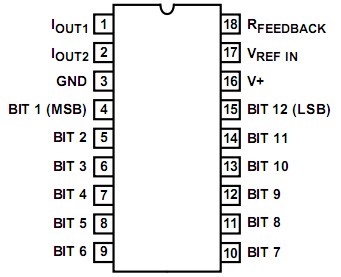

AD7541 Connection Diagram
AD7541
PDF/DataSheet Download
- Datasheet: AD7541
- File Size: 54916 KB
- Manufacturer: Intersil
- Click here to Download
