Part Number: AD7545GUE
Description: The AD7545 is a monolithic 12-bit CMOS multiplying DACwith onboard data latches. It is loaded by a single 12-bit wid...
- Table of contents:
AD7545GUE
-
Suppliers
DataSheet
General Description
AD7545GUE General Description
The AD7545 is a monolithic 12-bit CMOS multiplying DACwith onboard data latches. It is loaded by a single 12-bit wideword and directly interfaces to most 12- and 16-bit bus systems.Data is loaded into the input latches under the control of the CS and WR inputs; tying these control inputs low makes the inputlatches transparent, allowing direct unbuffered operation of theDAC.
The AD7545 is particularly suitable for single supply operationand applications with wide temperature variations.The AD7545 can be used with any supply voltage from +5 V to+15 V. With CMOS logic levels at the inputs the device dissi-pates less than 0.5 mW for VDD = +5 V.
AD7545GUE Maximum Ratings
(TA = + 25°C unless otherwise noted)
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3, +17 V
Digital Input Voltage to DGND . . . . . . . 0.3 V, VDD +0.3 V
VRFB, VREF to DGND . . . . . . . . . . . . . . . . . . . . . . . . ±25 V
VPIN1 to DGND . . . . . . . . . . . . . . . . . . . 0.3 V, VDD +0.3 V
AGND to DGND . . . . . . . . . . . . . . . . . 0.3 V, VDD + 0.3 V
Power Dissipation (Any Package) to +75 . . . . . . 450 mW
Derates above +75 . . . . . . . . . . . . . . . . . . . . . . .6 mW/
Operating Temperature
Commercial (J, K, L, GL) Grades . . . . . . . . . . 0 to +70
Industrial (A, B, C, GC) Grades . . . . . . . . 25 to +85
Extended (S, T, U, GU) Grades . . . . . . . 55 to +125
Storage Temperature . . . . . . . . . . . . . . . . 65 to +150
Lead Temperature (Soldering, 10 secs) . . . . . . . . .. +300
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . 0.3, +17 V
Digital Input Voltage to DGND . . . . . . . 0.3 V, VDD +0.3 V
VRFB, VREF to DGND . . . . . . . . . . . . . . . . . . . . . . . . ±25 V
VPIN1 to DGND . . . . . . . . . . . . . . . . . . . 0.3 V, VDD +0.3 V
AGND to DGND . . . . . . . . . . . . . . . . . 0.3 V, VDD + 0.3 V
Power Dissipation (Any Package) to +75 . . . . . . 450 mW
Derates above +75 . . . . . . . . . . . . . . . . . . . . . . .6 mW/
Operating Temperature
Commercial (J, K, L, GL) Grades . . . . . . . . . . 0 to +70
Industrial (A, B, C, GC) Grades . . . . . . . . 25 to +85
Extended (S, T, U, GU) Grades . . . . . . . 55 to +125
Storage Temperature . . . . . . . . . . . . . . . . 65 to +150
Lead Temperature (Soldering, 10 secs) . . . . . . . . .. +300
AD7545GUE Features
12-Bit Resolution
Low Gain TC: 2 ppm/ typ
Fast TTL Compatible Data Latches
Single +5 V to +15 V Supply
Small 20-Lead 0.3" DIP and 20-Terminal Surface Mount
Packages
Latch Free (Schottky Protection Diode Not Required)
Low Cost
Ideal for Battery Operated Equipment
Low Gain TC: 2 ppm/ typ
Fast TTL Compatible Data Latches
Single +5 V to +15 V Supply
Small 20-Lead 0.3" DIP and 20-Terminal Surface Mount
Packages
Latch Free (Schottky Protection Diode Not Required)
Low Cost
Ideal for Battery Operated Equipment

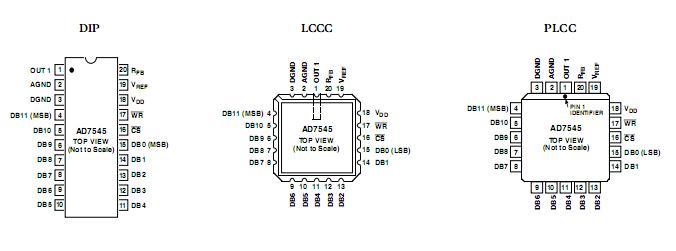

AD7545GUE Connection Diagram
AD7545GUE
