Purchase AD7610, In-stock AD7610 From SeekIC.

MFG:ADI  D/C:09

AD7610 Product Image

AD7 Series Datasheet download

Five Points

Part Number: AD7610



MFG: ADI



D/C: 09

Description: The AD7610 is a 16-bit charge redistribution successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabri...


Urgent Purchase

AD7610 General Description


The AD7610 is a 16-bit charge redistribution successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.'s iCMOS high voltage

AD7610 Maximum Ratings

Resolution (Bits) 16bit
T-Put Rate 250kSPS
# Chan 1
Supply V Multi(±15, +5)
Pwr Diss (max) 110mW
Interface Par,Ser,SPI
Ain Range Bip 10V,Bip 5.0V,Uni 10V,Uni 5.0V
SNR (dB) 93dB
Pkg Type CSP,QFP

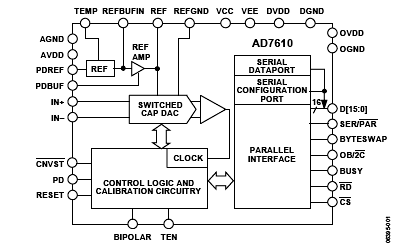

AD7610 Connection Diagram

AD7610 Connection Diagram
