Purchase AD7634, In-stock AD7634 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7634
MFG: ADI
D/C: 09
Description: The AD7634 is an 18-bit charge redistribution successive approximation register (SAR), architecture analog-to- digital converter (ADC) ...
- Table of contents:
AD7634
-
Suppliers
DataSheet
General Description
AD7634 General Description
The AD7634 is an 18-bit charge redistribution successive approximation register (SAR), architecture analog-to- digital converter (ADC) fabricated on Analog Devices, Inc.'s iCMOS high
AD7634 Maximum Ratings
| Resolution (Bits) | 18bit |
| T-Put Rate | 670kSPS |
| # Chan | 1 |
| Supply V | Multi(±15, +5) |
| Pwr Diss (max) | 225mW |
| Interface | Byte,Par,Ser,SPI |
| Ain Range | 10V p-p,20 V p-p,40 V p-p |
| SNR (dB) | 100dB |
| Pkg Type | CSP,QFP |

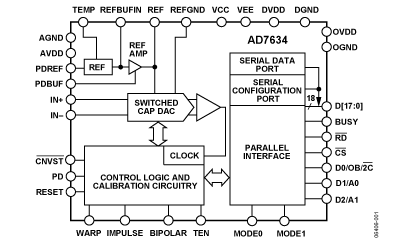

AD7634 Connection Diagram
