Purchase AD7643, In-stock AD7643 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7643
MFG: ADI
D/C: 09
Description: The AD7643 is an 18-bit, 1.25 MSPS, charge redistribution SAR, fully differential, analog-to-digital converter (ADC) that operates from...
- Table of contents:
AD7643
-
Suppliers
DataSheet
General Description
AD7643 General Description
The AD7643 is an 18-bit, 1.25 MSPS, charge redistribution SAR, fully differential, analog-to-digital converter (ADC) that operates from a single 2.5 V power supply. The part contains a high speed,
AD7643 Maximum Ratings
| Resolution (Bits) | 18bit |
| T-Put Rate | 1.25MSPS |
| # Chan | 1 |
| Supply V | Single(+2.5) |
| Pwr Diss | 80mW |
| Interface | Byte,Par,Ser,SPI |
| Ain Range | (2Vref) p-p |
| SNR (dB) | 93.5dB |
| Pkg Type | CSP,QFP |

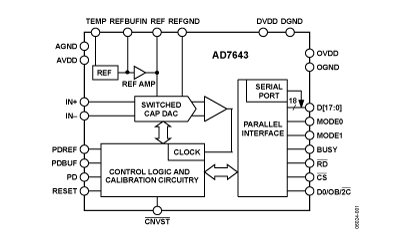

AD7643 Connection Diagram
