Purchase AD7650, In-stock AD7650 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7650
MFG: ADI
D/C: 09
Description: The AD7650 is a low cost, 16-bit, 570 kSPS, unipolar CMOS Successive Approximation ADC featuring 15-bits No Missing Codes. This model w...
- Table of contents:
AD7650
-
Suppliers
DataSheet
General Description
AD7650 General Description
The AD7650 is a low cost, 16-bit, 570 kSPS, unipolar CMOS Successive Approximation ADC featuring 15-bits No Missing Codes. This model was developed to compete against ADCs with similar performance
AD7650 Maximum Ratings
| Resolution (Bits) | 16bit |
| T-Put Rate | 570kSPS |
| # Chan | 1 |
| Supply V | Single(+5) |
| Pwr Diss | 115mW |
| Interface | Par,Ser,SPI |
| Ain Range | Uni (Vref) |
| SNR (dB) | 86dB |
| Pkg Type | CSP,QFP |

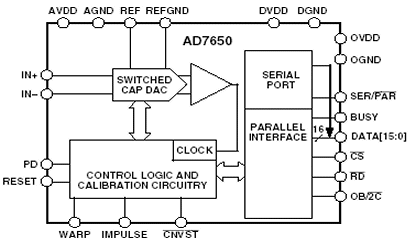

AD7650 Connection Diagram
AD7650
PDF/DataSheet Download
- Datasheet: AD7650
- File Size: 344664 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
