Purchase AD7651, In-stock AD7651 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7651
MFG: ADI
D/C: 09
Description: The AD7651 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. ...
- Table of contents:
AD7651
-
Suppliers
DataSheet
General Description
AD7651 General Description
The AD7651 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an
AD7651 Maximum Ratings
| Resolution (Bits) | 16bit |
| T-Put Rate | 100kSPS |
| # Chan | 1 |
| Supply V | Single(+5) |
| Pwr Diss | 45mW |
| Interface | Par,Ser,SPI |
| Ain Range | Uni (Vref),Uni 2.5V |
| SNR (dB) | 86dB |
| Pkg Type | CSP,QFP |

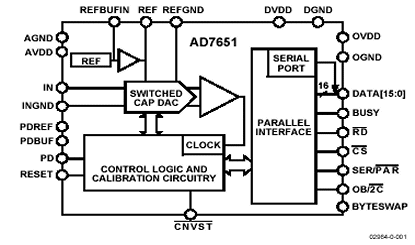

AD7651 Connection Diagram
AD7651
PDF/DataSheet Download
- Datasheet: AD7651
- File Size: 344664 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
