General Description
AD7660 General Description
The AD7660 is a 16-bit, 100 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.
The AD7660 is hardware factory-calibrated and is comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.
It is fabricated using Analog Devices' high performance, 0.6 micron CMOS process with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from 40C to +85C.
AD7660 Maximum Ratings
Analog Inputs IN2, REF, INGND, REFGND . . . . . . . . AVDD + 0.3 V to AGND 0.3 V
Ground Voltage Differences AGND, DGND, OGND . . . . . . . . . . . . . . . . . . . . . ±0.3 V
Supply Voltages
AVDD, DVDD, OVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
AVDD to DVDD, AVDD to OVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
DVDD to OVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±7 V
Digital Inputs
Except the Databus D(7:4) . . . . . . . . . . . . . . . . . . . . .. 0.3 V to DVDD + 0.3 V
Databus Inputs D(7:4) . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to OVDD + 0.3 V
Internal Power Dissipation3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700 mW
Internal Power Dissipation4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 W
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . .. . 65C to +150
Lead Temperature Range (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . .. . . . . 300
AD7660 Features
Throughput: 100 kSPS
INL: ±3 LSB Max (±0.0046% of Full-Scale)
16-Bit Resolution with No Missing Codes S/(N+D): 87 dB Min @ 10 kHz, 90 dB Typ @ 45 kHz
THD: 96 dB Max @ 10 kHz
Analog Input Voltage Range: 0 V to 2.5 V Both AC and DC Specifications
No Pipeline Delay Parallel and Serial 5 V/3 V Interface
SPI®/QSPI™/MICROWIRE™/DSP Compatible Single 5 V Supply Operation
21 mW Typical Power Dissipation, 21 W @ 100 SPS
Power-Down Mode: 7 W Max
Package: 48-Lead Quad Flatpack (LQFP)
48-Lead Chip Scale Package (LFCSP)
Pin-to-Pin Compatible with the AD7664
AD7660 Typical Application
Data Acquisition
Battery-Powered Systems
PCMCIA
Instrumentation
Automatic Test Equipment
Scanners
Medical Instruments
Process Control

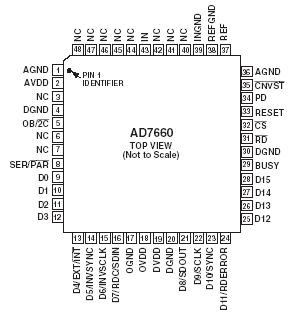

AD7660 Connection Diagram
