AD7667 General Description
The AD7667 is a 16-bit, 1 MSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V
power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system interface ports.
It features a very high sampling rate mode (Warp) and, for asynchronous conversion rate applications, a fast mode
(Normal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.
It is fabricated using Analog Devices' high-performance, 0.6 micron CMOS process, with correspondingly low cost and is available in a 48-lead LQFP and a tiny 48-lead LFCSP with operation specified from 40°C to +85°C.
AD7667 Maximum Ratings
IN2, TEMP2,REF, REFBUFIN, INGND, REFGND to AGND
. . . . . . . . . . . . . . . . .AVDD + 0.3 V to AGND 0.3 V
Ground Voltage Differences
AGND, DGND, OGND . . . . . . . . . . . . . . . . . .±0.3 V
Supply Voltages
AVDD, DVDD, OVDD . . . . . . . . . . . . . -0.3V to +7 V
AVDD to DVDD, AVDD to OVDD . . . . . . . . . . . ±7 V
DVDD to OVDD . . . . . . . . . . . . . . . . . -0.3V to +7 V
Digital Inputs . . . . . . . . . . . 0.3 V to DVDD + 3.0 V
Internal Power Dissipation3 . . . . . . . . . . . . 700 mW
Internal Power Dissipation4 . . . . . . . . . . . . . 2.5 W
Junction Temperature . . . . . . . . . . . . . . . . . 150°C
Storage Temperature Range . . 65°C to +150°C
Lead Temperature Range
(Soldering 10 sec) . . . . . . . . . . . . . . 300°C
. . . . . . . . . . . . . . . . .AVDD + 0.3 V to AGND 0.3 V
Ground Voltage Differences
AGND, DGND, OGND . . . . . . . . . . . . . . . . . .±0.3 V
Supply Voltages
AVDD, DVDD, OVDD . . . . . . . . . . . . . -0.3V to +7 V
AVDD to DVDD, AVDD to OVDD . . . . . . . . . . . ±7 V
DVDD to OVDD . . . . . . . . . . . . . . . . . -0.3V to +7 V
Digital Inputs . . . . . . . . . . . 0.3 V to DVDD + 3.0 V
Internal Power Dissipation3 . . . . . . . . . . . . 700 mW
Internal Power Dissipation4 . . . . . . . . . . . . . 2.5 W
Junction Temperature . . . . . . . . . . . . . . . . . 150°C
Storage Temperature Range . . 65°C to +150°C
Lead Temperature Range
(Soldering 10 sec) . . . . . . . . . . . . . . 300°C
AD7667 Features
`Throughput:
1 MSPS (Warp Mode)
800 kSPS (Normal Mode)
`INL: ±2.5 LSB Max (±0.0038% of Full Scale)
`16 Bits Resolution with No Missing Codes
`Analog Input Voltage Range: 0 V to 2.5 V
`No Pipeline Delay
`Parallel and Serial 5 V/3 V Interface
`SPITM/QSPITM/MICROWIRETM/DSP Compatible
`Single 5 V Supply Operation
`Power Dissipation
112 mW Typ without REF, 122 mW Typ with REF
15 W @ 100 SPS
`Power-Down Mode: 7 W Max
`Package: 48-Lead Quad Flat Pack (LQFP);
`48-Lead Chip Scale Package (LFCSP);
`Pin-to-Pin Compatible with PulSAR ADCs
1 MSPS (Warp Mode)
800 kSPS (Normal Mode)
`INL: ±2.5 LSB Max (±0.0038% of Full Scale)
`16 Bits Resolution with No Missing Codes
`Analog Input Voltage Range: 0 V to 2.5 V
`No Pipeline Delay
`Parallel and Serial 5 V/3 V Interface
`SPITM/QSPITM/MICROWIRETM/DSP Compatible
`Single 5 V Supply Operation
`Power Dissipation
112 mW Typ without REF, 122 mW Typ with REF
15 W @ 100 SPS
`Power-Down Mode: 7 W Max
`Package: 48-Lead Quad Flat Pack (LQFP);
`48-Lead Chip Scale Package (LFCSP);
`Pin-to-Pin Compatible with PulSAR ADCs
AD7667 Typical Application
·Data Acquisition
·Instrumentation
·Digital Signal Processing
·Spectrum Analysis
·Medical Instruments
·Battery-Powered Systems
·Process Control
·Instrumentation
·Digital Signal Processing
·Spectrum Analysis
·Medical Instruments
·Battery-Powered Systems
·Process Control

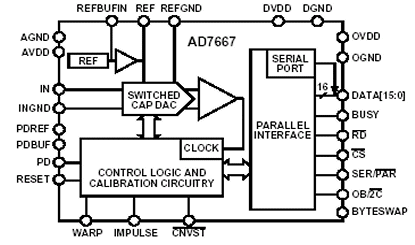

AD7667 Connection Diagram
