Purchase AD7741, In-stock AD7741 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7741
MFG: ADI
D/C: 09
Description: The AD7741/AD7742 are a new generation of synchronous voltage-to-frequency converters (VFCs). The AD77...
- Table of contents:
AD7741
-
Suppliers
DataSheet
General Description

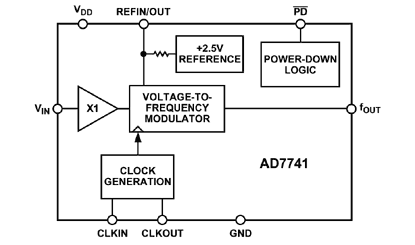

AD7741 General Description
The AD7741/AD7742 are a new generation of synchronous voltage-to-frequency converters (VFCs). The AD7741 is a single-channel version in an 8-lead package (SOIC/DIP) and the AD7742 is a multichannel version in a 16-lead package (SOIC/DIP). No user trimming is required to achieve the specified performance.
The AD7741 has a single buffered input whereas the AD7742 has four buffered inputs that may be configured as two fully-differential inputs or three pseudo-differential inputs. Both parts include an on-chip +2.5 V bandgap reference that provides the user with the option of using this internal reference or an exter-nal reference.
The AD7741 has a single-ended voltage input range from 0 V to REFIN. The AD7742 has a differential voltage input range from VREF to +VREF. Both parts operate from a single +5 V supply consuming typically 6 mA, and also contain a power-down feature that reduces the current consumption to less than 35 m A.
AD7741 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3V to +7 V
Analog Input Voltage to GND . . . . . . . . . . . . . . . . . 5 V to VDD + 0.3 V
Digital Input Voltage to GND . . . . . . . . . . . . . . . .. 0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
fOUT to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . . . . . . . . . 40 °C to +105° C
Industrial (B Version) . . . . . . . . . . . . . . . . . . . . . . . . 40 °C to +85° C
Storage Temperature Range . . . . . . . . . . . . . . . . . 65 °C to +150° C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . .. . +150 °C
Plastic DIP Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . . .. . . . . 125 °C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . . .. . . . 117 °C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . +215° C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . +220 °C
SOIC Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ... . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . . . . .. .. . 157° C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . . . .. . . 125° C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. +215 °C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . +220 °C
Analog Input Voltage to GND . . . . . . . . . . . . . . . . . 5 V to VDD + 0.3 V
Digital Input Voltage to GND . . . . . . . . . . . . . . . .. 0.3 V to VDD + 0.3 V
Reference Input Voltage to GND . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
fOUT to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Operating Temperature Range
Automotive (Y Version) . . . . . . . . . . . . . . . . . . . . . 40 °C to +105° C
Industrial (B Version) . . . . . . . . . . . . . . . . . . . . . . . . 40 °C to +85° C
Storage Temperature Range . . . . . . . . . . . . . . . . . 65 °C to +150° C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . .. . +150 °C
Plastic DIP Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . . . . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . . .. . . . . 125 °C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . . .. . . . 117 °C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . +215° C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . +220 °C
SOIC Package
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . ... . 450 mW
q JA Thermal Impedance (8 Lead) . . . . . . . . . . . . . . . . . . .. .. . 157° C/W
q JA Thermal Impedance (16 Lead) . . . . . . . . . . . . . . . . . .. . . 125° C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. +215 °C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . +220 °C
AD7741 Features
AD7741: One Single-Ended Input Channel
AD7742: Two Differential or Three Pseudo-Differential
Input Channels
Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz
(AD7742) and at fOUT(Max) = 1.35 MHz (AD7741)
Single +5 V Supply Operation
Buffered Inputs
Programmable Gain Analog Front-End
On-Chip +2.5 V Reference
Internal/External Reference Option
Power Down to 35 mA Max
Minimal External Components Required
8-Lead and 16-Lead DIP and SOIC Packages
AD7742: Two Differential or Three Pseudo-Differential
Input Channels
Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz
(AD7742) and at fOUT(Max) = 1.35 MHz (AD7741)
Single +5 V Supply Operation
Buffered Inputs
Programmable Gain Analog Front-End
On-Chip +2.5 V Reference
Internal/External Reference Option
Power Down to 35 mA Max
Minimal External Components Required
8-Lead and 16-Lead DIP and SOIC Packages
AD7741 Typical Application
Low Cost Analog-to-Digital Conversion
Signal Isolation
Signal Isolation

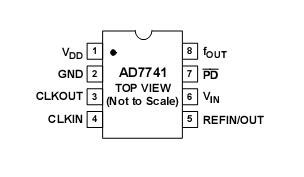

AD7741 Connection Diagram
AD7741
