Purchase AD7767, In-stock AD7767 From SeekIC.

MFG:ADI  D/C:09

AD7767 Product Image

AD7 Series Datasheet download

Five Points

Part Number: AD7767



MFG: ADI



D/C: 09

Description: The AD7767/AD7767-1/AD7767-2 are high performance, 24-bit, oversampled SAR analog-to-digital converters (ADCs). The AD7767/AD7767-1/AD7767...


Urgent Purchase

AD7767 General Description


The AD7767/AD7767-1/AD7767-2 are high performance, 24-bit, oversampled SAR analog-to-digital converters (ADCs). The AD7767/AD7767-1/AD7767-2 combine the benefits of a large dynamic range and input

AD7767 Maximum Ratings

Resolution (Bits) 24bit
T-Put Rate 128kSPS
# Chan 1
Supply V Single(+2.5)
Pwr Diss (max) 18mW
Interface Ser
Ain Range (2Vref) p-p
SNR (dB) 113.5dB
Pkg Type SOP

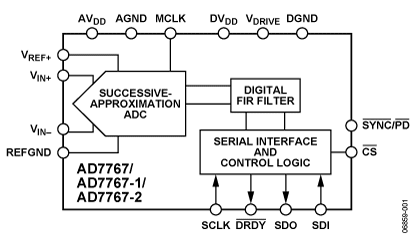

AD7767 Connection Diagram

AD7767 Connection Diagram

AD7767 datasheet
