Part Number: AD7795



MFG: ADI



D/C: 09

Description: The AD7794/AD7795 are low power, low noise, complete analog front ends for high precision measurement applications. They contain a low noi...


Urgent Purchase

AD7795 General Description


The AD7794/AD7795 are low power, low noise, complete analog front ends for high precision measurement applications. They contain a low noise, 24-/16-bit Σ-Δ ADC with six differential inputs.

AD7795 Maximum Ratings

Resolution (Bits) 16bit
T-Put Rate 470SPS
# Chan 6
Supply V Multi(+3, +5),Multi(+3.3, +5),Single(+2.7 to +5.25) ,Single(+2.7),Single(+3),Single(+3.3),Single(+5)
Pwr Diss 2.5mW
Interface Ser,SPI
Ain Range (2Vref/PGA Gain) p-p
SNR (dB) n/a
Pkg Type SOP

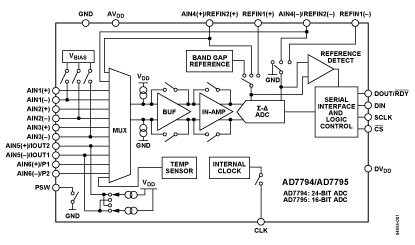

AD7795 Connection Diagram

AD7795 Connection Diagram
