Purchase AD7861, In-stock AD7861 From SeekIC.
MFG:ADI D/C:09
Part Number: AD7861
MFG: ADI
D/C: 09
Description: The AD7861 is a multichannel simultaneous sampling A/D Converter (ADC) configured for the acquisition ...
- Table of contents:
AD7861
-
Suppliers
DataSheet
General Description
AD7861 General Description

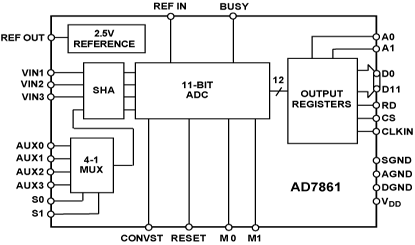

The AD7861 is a multichannel simultaneous sampling A/D Converter (ADC) configured for the acquisition of voltage inputs in a motor control solution or three-phase power system.
The AD7861 combined with Analog Devices' 16-bit fixedpoint digital signal processor (DSP) provides a low cost 16-bit fixed-point microcontroller solution.
The input stage has been designed to accommodate the types of signals frequently found in motor drives. The VIN1, VIN2, and VIN3 channels are simultaneously sampled inputs suitable for stator current acquisition. The AUX0AUX3 channels are multiplexed and are suitable for slower moving inputs such as temperature and bus voltage of the diode rectifier output in a motor control application.
AD7861 Maximum Ratings
Supply Voltage (VDD) . . . . . . . . . . . . . . . . . 0.3 V to +7.0 V
Digital Input Voltage . . . . . . . . . . . . . . . . . .. . . 0.3 V to VDD
Analog Input Voltage . . . . . . . . . . . . . . . . . . . . 0.3 V to VDD
Analog Reference Input Voltage . . . . . . . . . . . 0.3 V to VDD
Digital Output Voltage Swing . . . . . . . . . . . . . . 0.3 V to VDD
Analog Reference Output Swing . . . . . . . . . . . 0.3 V to VDD
Operating Temperature . . . . . . . . . . . . .. . 40°C to +85°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . +280°C
Digital Input Voltage . . . . . . . . . . . . . . . . . .. . . 0.3 V to VDD
Analog Input Voltage . . . . . . . . . . . . . . . . . . . . 0.3 V to VDD
Analog Reference Input Voltage . . . . . . . . . . . 0.3 V to VDD
Digital Output Voltage Swing . . . . . . . . . . . . . . 0.3 V to VDD
Analog Reference Output Swing . . . . . . . . . . . 0.3 V to VDD
Operating Temperature . . . . . . . . . . . . .. . 40°C to +85°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . +280°C
AD7861 Features
11-Bit Resolution Analog-to-Digital Converter
Seven Single-Ended Analog Inputs
Four Input Channels Simultaneously Sampled
Expansion with 4 Multiplexed Inputs
Internal 2.5 V Reference
3.2 s Conversion Time per Channel
User Definable Channel Sequencing
Single Supply +5 V Operation
Double Buffered Register Outputs
6.25 MHz to 12.5 MHz Operating Clock Range
Seven Single-Ended Analog Inputs
Four Input Channels Simultaneously Sampled
Expansion with 4 Multiplexed Inputs
Internal 2.5 V Reference
3.2 s Conversion Time per Channel
User Definable Channel Sequencing
Single Supply +5 V Operation
Double Buffered Register Outputs
6.25 MHz to 12.5 MHz Operating Clock Range
AD7861 Typical Application
Motor Control
3-Phase Power Measurement
Cellular Phones
Data Acquisition
3-Phase Power Measurement
Cellular Phones
Data Acquisition

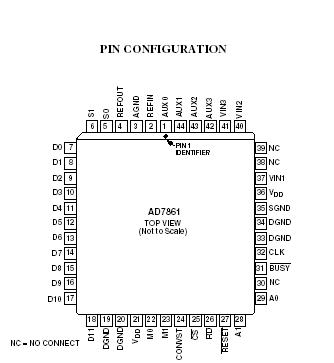

AD7861 Connection Diagram
AD7861
