Part Number: AD7892



MFG: TOSHIBA

Package Cooled: N/A

D/C: 793

Description: The AD7892 is a high speed, low power, 12-bit A/D converter that operates from a single +5 V supply. The part contains a 1.47 s successive...


Urgent Purchase

AD7892 General Description


The AD7892 is a high speed, low power, 12-bit A/D converter that operates from a single +5 V supply. The part contains a 1.47 s successive approximation ADC, an on-chip track/hold amplifier, an

AD7892 Maximum Ratings

Resolution (Bits) 12bit
T-Put Rate n/a
# Chan 1
Supply V Single(+5)
Pwr Diss 90mW
Interface Par,Ser
Ain Range Bip 10V,Bip 2.5V,Bip 5.0V,Uni 2.5V
SNR (dB) 70dB
Pkg Type DIP,SOIC

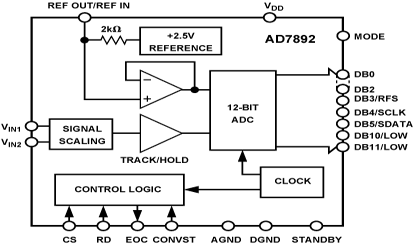

AD7892 Connection Diagram

AD7892 Connection Diagram
