Part Number: AD7899



MFG: ADI



D/C: 09

Description: The AD7899 is a fast, low power, 14-bit A/D converter that operates from a single +5 V supply. The part contains a 2.0 s successive approx...


Urgent Purchase

AD7899 General Description


The AD7899 is a fast, low power, 14-bit A/D converter that operates from a single +5 V supply. The part contains a 2.0 s successive approximation ADC, a track/hold amplifier, 2.5 V reference, on chip

AD7899 Maximum Ratings

Resolution (Bits) 14bit
T-Put Rate 400kSPS
# Chan 1
Supply V Single(+5)
Pwr Diss 125mW
Interface Par
Ain Range Bip (Vref),Bip (Vref) x 2,Bip (Vref) x 4,Bip 10V,Bip 2.5V,Bip 5.0V,Uni (Vref),Uni (Vref) x 2,Uni 2.5V,Uni 5.0V
SNR (dB) 78dB
Pkg Type SOIC,SOP

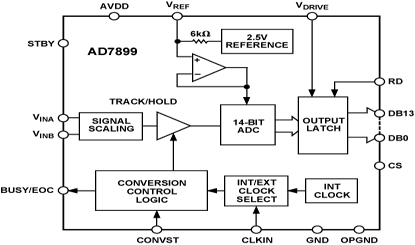

AD7899 Connection Diagram

AD7899 Connection Diagram
