Purchase AD8000, In-stock AD8000 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8000
MFG: ADI
D/C: 09
Description: The AD8000 is an ultrahigh speed, high performance, current feedback amplifier. Using ADI's proprietar...
- Table of contents:
AD8000
-
Suppliers
DataSheet
General Description
AD8000 General Description
The AD8000 is an ultrahigh speed, high performance, current feedback amplifier. Using ADI's proprietary eXtra Fast Com-plementary Bipolar (XFCB) process, the amplifier can achieve a small signal bandwidth of 1.5 GHz and a slew rate of 4100 V/s.
The AD8000 has low spurious-free dynamic range (SFDR) of 75 dBc @ 20 MHz and input voltage noise of 1.6 nV/Hz. The AD8000 can drive over 100 mA of load current with minimal distortion. The amplifier can operate on +5 V to ±6 V. These specifications make the AD8000 ideal for a variety of applica-tions, including high speed instrumentation.
With a differential gain of 0.02%, differential phase of 0.01°, and 0.1 dB flatness out to 170 MHz, the AD8000 has excellent video specifications, which ensure that even the most demanding video systems maintain excellent fidelity.

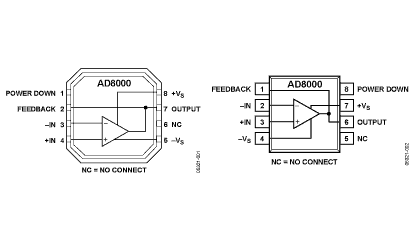

The AD8000 power-down mode reduces the supply current to 1.3 mA. The amplifier is available in a tiny 8-lead LFCSP pack-age, as well as in an 8-lead SOIC package. The AD8000 is rated to work over the extended industrial temperature range (−40°C to +125°C). A triple version of the AD8000 (AD8003) is under-development.
AD8000 Maximum Ratings
| Parameter | Rating |
| Supply Voltage | 12.6 V |
| Power Dissipation | See Figure 4 |
| Common-Mode Input Voltage | −VS − 0.7 V to +VS + 0.7 V |
| Differential Input Voltage | ±VS |
| Exposed Paddle Voltage | −VS |
| Storage Temperature | −65°C to +125°C |
| Operating Temperature Range | −40°C to +125°C |
| Lead Temperature Range (Soldering, 10 sec) | 300°C |
| Junction Temperature | 150°C |
AD8000 Features
` High speed
` 1.5 GHz, −3 dB bandwidth (G = +1)
` 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p)
` Slew rate: 4100 V/s
` 0.1% settling time: 12 ns
` Excellent video specifications
` 0.1 dB flatness: 170 MHz
` Differential gain: 0.02%
` Differential phase: 0.01°
` Output overdrive recovery: 22 ns
` Low noise: 1.6 nV/Hz input voltage noise
` Low distortion over wide bandwidth
` 75 dBc SFDR @ 20 MHz
` 62 dBc SFDR @ 50 MHz
` Input offset voltage: 1 mV typ
` High output current: 100 mA
` Wide supply voltage range: 4.5 V to 12 V
` Supply current: 13.5 mA
` Power-down mode
` 1.5 GHz, −3 dB bandwidth (G = +1)
` 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p)
` Slew rate: 4100 V/s
` 0.1% settling time: 12 ns
` Excellent video specifications
` 0.1 dB flatness: 170 MHz
` Differential gain: 0.02%
` Differential phase: 0.01°
` Output overdrive recovery: 22 ns
` Low noise: 1.6 nV/Hz input voltage noise
` Low distortion over wide bandwidth
` 75 dBc SFDR @ 20 MHz
` 62 dBc SFDR @ 50 MHz
` Input offset voltage: 1 mV typ
` High output current: 100 mA
` Wide supply voltage range: 4.5 V to 12 V
` Supply current: 13.5 mA
` Power-down mode
AD8000 Typical Application
· Professional video
· High speed instrumentation
· Video switching
· IF/RF gain stage
· CCD imaging
· High speed instrumentation
· Video switching
· IF/RF gain stage
· CCD imaging
AD8000
