Purchase AD8113, In-stock AD8113 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8113
MFG: ADI
D/C: 09
Description: The AD8113 is a fully buffered crosspoint switch matrix...
- Table of contents:
AD8113
-
Suppliers
DataSheet
General Description
AD8113 General Description
The AD8113 is a fully buffered crosspoint switch matrix that operates on ±12 V for audio applications and ±5 V for video applications. It offers a 3 dB signal bandwidth greater than 60 MHz and channel switch times of less than 60 ns with 0.1% settling for use in both analog and digital audio. The AD8113 operated at 20 kHz has crosstalk performance of 83 dB and isolation of 90 dB. In addition, ground/power pins surround all inputs and outputs to provide extra shielding for operation in the most demanding audio routing applications. The differential gain and differential phase of better than 0.1% and 0.1°, respectively,along with 0.1 dB flatness out to 10 MHz, make the AD8113 suitable for many video applications.
The AD8113 includes 16 independent output buffers that can be placed into a disabled state for paralleling crosspoint outputs so that off channel loading is minimized. The AD8113 has a gain of +2. It operates on voltage supplies of ±5 V or ±12 V while consuming only 34 mA or 31 mA of current, respectively. The channel switching is performed via a serial digital control (which can accommodate daisy-chaining of several devices) or via a parallel control, allowing updating of an individual output without reprogramming the entire array.
The AD8113 is packaged in a 100-lead LQFP and is available over the commercial temperature range of 0°C to 70°C.
AD8113 Maximum Ratings
Analog Supply Voltage (AVCC AVEE) . . . . . . . . . . . 26.0 V
Digital Supply Voltage (DVCC DGND) . . . . . . . . . . . . .. 6 V
Ground Potential Difference (AGND DGND) . . . . ... ±0.5 V
Internal Power Dissipation2 . . . . . . . . . . . . . . . . . . . 3.1 W
Analog Input Voltage3 . . . . . . . . ... Maintain Linear Output
Digital Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . DVCC
Output Voltage (Disabled Output)
. . . . . . . . . . . . . . . . . . . ... (AVCC 1.5 V) to (AVEE + 1.5 V)
Output Short-Circuit Duration . . . . . . . . . . . . . Momentary
Storage Temperature Range . . . . . . . . . 65°C to +125°C
Lead Temperature Range (Soldering 10 sec) . . . . . .300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2Specification is for device in free air (TA = 25°C):100-lead plastic LQFP (ST): JA = 40°C/W.
3To avoid differential input breakdown, in no case should one-half the output voltage (1/2 VOUT) and any input voltage be greater than 10 V potential differential. See output voltage swing specification for linear output range.
Digital Supply Voltage (DVCC DGND) . . . . . . . . . . . . .. 6 V
Ground Potential Difference (AGND DGND) . . . . ... ±0.5 V
Internal Power Dissipation2 . . . . . . . . . . . . . . . . . . . 3.1 W
Analog Input Voltage3 . . . . . . . . ... Maintain Linear Output
Digital Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . DVCC
Output Voltage (Disabled Output)
. . . . . . . . . . . . . . . . . . . ... (AVCC 1.5 V) to (AVEE + 1.5 V)
Output Short-Circuit Duration . . . . . . . . . . . . . Momentary
Storage Temperature Range . . . . . . . . . 65°C to +125°C
Lead Temperature Range (Soldering 10 sec) . . . . . .300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2Specification is for device in free air (TA = 25°C):100-lead plastic LQFP (ST): JA = 40°C/W.
3To avoid differential input breakdown, in no case should one-half the output voltage (1/2 VOUT) and any input voltage be greater than 10 V potential differential. See output voltage swing specification for linear output range.
AD8113 Features
` 16* 16 High Speed Nonblocking Switch Array
` Serial or Parallel Programming of Switch Array
` Serial Data Out Allows Daisy Chaining Control of Multiple 16* 16s to Create Larger Switch Arrays
` Output Disable Allows Connection of Multiple Devices without Loading the Output Bus
` Complete Solution
Buffered Inputs
16 Output Amplifiers
Operates on ±5 V or±12 V Supplies
Low Supply Current of 54 mA
` Excellent Audio Performance VS = ±12 V ±10 V Output Swing
0.002% THD @ 20 kHz Max. 20 V p-p (RL = 600 )
` Excellent Video Performance VS = ±5 V
10 MHz 0.1 dB Gain Flatness
0.1% Differential Gain Error (RL = 1 k )
0.1 Differential Phase Error (RL = 1 k)
` Excellent AC Performance
3 dB Bandwidth 60 MHz
` Low All Hostile Crosstalk of
83 dB @ 20 kHz
` Reset Pin Allows Disabling of All Outputs (Connected to a Capacitor to Ground Provides Power-On Reset Capability)
` 100-Lead LQFP (14 mm*14 mm)
` Serial or Parallel Programming of Switch Array
` Serial Data Out Allows Daisy Chaining Control of Multiple 16* 16s to Create Larger Switch Arrays
` Output Disable Allows Connection of Multiple Devices without Loading the Output Bus
` Complete Solution
Buffered Inputs
16 Output Amplifiers
Operates on ±5 V or±12 V Supplies
Low Supply Current of 54 mA
` Excellent Audio Performance VS = ±12 V ±10 V Output Swing
0.002% THD @ 20 kHz Max. 20 V p-p (RL = 600 )
` Excellent Video Performance VS = ±5 V
10 MHz 0.1 dB Gain Flatness
0.1% Differential Gain Error (RL = 1 k )
0.1 Differential Phase Error (RL = 1 k)
` Excellent AC Performance
3 dB Bandwidth 60 MHz
` Low All Hostile Crosstalk of
83 dB @ 20 kHz
` Reset Pin Allows Disabling of All Outputs (Connected to a Capacitor to Ground Provides Power-On Reset Capability)
` 100-Lead LQFP (14 mm*14 mm)
AD8113 Typical Application
· Analog/Digital Audio Routers
· Video Routers (NTSC, PAL, S-VIDEO, SECAM)
· Multimedia Systems
· Video Conferencing
· CCTV Surveillance
· Video Routers (NTSC, PAL, S-VIDEO, SECAM)
· Multimedia Systems
· Video Conferencing
· CCTV Surveillance

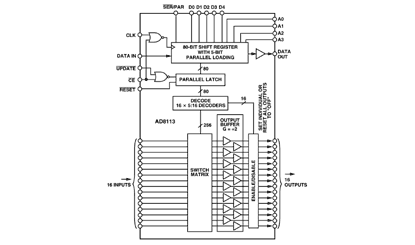

AD8113 Connection Diagram
AD8113
