Purchase AD8116, In-stock AD8116 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8116
MFG: ADI
D/C: 09
Description: The AD8116 is a high speed 16 *16 video crosspoint switch matrix. It offers ...
- Table of contents:
AD8116
-
Suppliers
DataSheet
General Description
AD8116 General Description
The AD8116 is a high speed 16 *16 video crosspoint switch matrix. It offers a 3 dB signal bandwidth greater than 200 MHz and channel switch times of 60 ns with 0.1% settling. With 70 dB of crosstalk and 105 dB of isolation (@ 5 MHz), the AD8116 is useful in many high speed applications. The differential gain nd differential phase errors of better than 0.01% and 0.01°, respectively, along with 0.1 dB flatness out to 60 MHz make the AD8116 ideal for video signal switching.
The AD8116 includes output buffers that can be placed into a high impedance state for paralleling crosspoint outputs so that off channels do not load the output bus. It operates on voltage supplies of ±5 V while consuming only 90 mA of idle current.
The channel switching is performed via a serial digital control that can accommodate "daisy chaining" of several devices. The AD8116 is packaged in a 128-lead LQFP package occupying only 0.36 square inches, and is specified over the commercial temperature range of 0°C to +70°C.
AD8116 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.0 V
Internal Power Dissipation2
AD8116 128-Lead Plastic LQFP (ST) . . . . . . . . . . . ...... 3.5 W
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..±VS
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range . . . . . . . . . . . .65°C to +125°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . +300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2Specification is for device in free air (TA = +25°C): 128-lead plastic LQFP (ST): JA = 37°C/W.
Internal Power Dissipation2
AD8116 128-Lead Plastic LQFP (ST) . . . . . . . . . . . ...... 3.5 W
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..±VS
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . Observe Power Derating Curves
Storage Temperature Range . . . . . . . . . . . .65°C to +125°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . +300°C
NOTES
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2Specification is for device in free air (TA = +25°C): 128-lead plastic LQFP (ST): JA = 37°C/W.
AD8116 Features
` Large 16* 16 High Speed Nonblocking Switch Array
` Switch Array Controllable via an 80-Bit Serial Word
` Serial Data Out Allows "Daisy Chaining" of Multiple
AD8116s to Create Large Switch Arrays Over 256 * 256
` Complete Solution Buffered Inputs
16 Individual Output Amplifiers
Drives 150 Loads
` Excellent Video Performance
60 MHz 0.1 dB Gain Flatness
0.01% Differential Gain Error (RL = 150 )
0.018 Differential Phase Error (RL = 150 )
` Excellent AC Performance
200 MHz 3 dB Bandwidth
300 V/s Slew Rate
` Low Power of 900 mW (3.5 mW per Point)
` Low All Hostile Crosstalk of 70 dB @ 5 MHz
` Output Disable Allows Direct Connection of Multiple Device Outputs
` Chip Enable Allows Selection of Individual AD8116s in Large Arrays (or Parallel Programming of AD8116s)
` Reset Pin Allows Disabling of All Outputs (Connected
Through a Capacitor to Ground Provides "Power-On" Reset Capability)
` 128-Lead LQFP Package (14 mm* 14 mm)
` Switch Array Controllable via an 80-Bit Serial Word
` Serial Data Out Allows "Daisy Chaining" of Multiple
AD8116s to Create Large Switch Arrays Over 256 * 256
` Complete Solution Buffered Inputs
16 Individual Output Amplifiers
Drives 150 Loads
` Excellent Video Performance
60 MHz 0.1 dB Gain Flatness
0.01% Differential Gain Error (RL = 150 )
0.018 Differential Phase Error (RL = 150 )
` Excellent AC Performance
200 MHz 3 dB Bandwidth
300 V/s Slew Rate
` Low Power of 900 mW (3.5 mW per Point)
` Low All Hostile Crosstalk of 70 dB @ 5 MHz
` Output Disable Allows Direct Connection of Multiple Device Outputs
` Chip Enable Allows Selection of Individual AD8116s in Large Arrays (or Parallel Programming of AD8116s)
` Reset Pin Allows Disabling of All Outputs (Connected
Through a Capacitor to Ground Provides "Power-On" Reset Capability)
` 128-Lead LQFP Package (14 mm* 14 mm)
AD8116 Typical Application
· Routing of High Speed Signals Including:
Composite Video (NTSC, PAL, S, SECAM, etc.)
Component Video (YUV, RGB, etc.)
3-Level Digital (HDB3)
· Video on Demand
· Ultrasound
· Communication Satellites
Composite Video (NTSC, PAL, S, SECAM, etc.)
Component Video (YUV, RGB, etc.)
3-Level Digital (HDB3)
· Video on Demand
· Ultrasound
· Communication Satellites

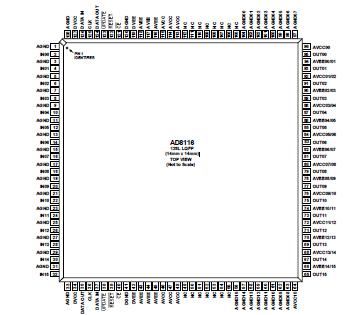

AD8116 Connection Diagram
AD8116
