General Description
AD8131 General Description
The AD8131 is a differential or single-ended input to differential output driver requiring no external components for a fixed gain of 2. The AD8131 is a major advancement over op amps for driving signals over long lines or for driving differential input ADCs. The AD8131 has a unique internal feedback feature that provides output gain and phase matching that are balanced to 60 dB at 10 MHz, reducing radiated EMI and suppressing harmonics. Manufactured on ADI's next generation XFCB bipolar process, the AD8131 has a 3 dB bandwidth of 400 MHz and delivers a differential signal with very low harmonic distortion.
The AD8131 is a differential driver for the transmission of high-speed signals over low-cost twisted pair or coax cables.The AD8131 can be used for either analog or digital video signals or for other high-speed data transmission. The AD8131 driver is capable of driving either Cat3 or Cat5 twisted pair or coax with minimal line attenuation. The AD8131 has considerable cost and performance improvements over discrete line driver solutions.
AD8131 Maximum Ratings
Supply Voltage.............................................................. ±5.5 V
VOCM ................................................................................ ±VS
Internal Power Dissipation2 .......................................250 mW
Operating Temperature Range .......................40°C to +85°C
Storage Temperature Range ....................... 65°C to +150°C
Lead Temperature (Soldering 10 sec).............................300°C
VOCM ................................................................................ ±VS
Internal Power Dissipation2 .......................................250 mW
Operating Temperature Range .......................40°C to +85°C
Storage Temperature Range ....................... 65°C to +150°C
Lead Temperature (Soldering 10 sec).............................300°C
AD8131 Features
High Speed
400 MHz 3 dB Full Power Bandwidth
2000 V/ms Slew Rate
Fixed Gain of 2 with No External Components
Internal Common-Mode Feedback to Improve Gain and Phase Balance
60 dB @10 MHz
Separate Input to Set the Common-Mode Output Voltage
Low Distortion
68 dB SFDR @ 5 MHz 200 Load
Low Power 7.5 mA @ 3 V
Power Supply Range +2.7 V to 65 V
400 MHz 3 dB Full Power Bandwidth
2000 V/ms Slew Rate
Fixed Gain of 2 with No External Components
Internal Common-Mode Feedback to Improve Gain and Phase Balance
60 dB @10 MHz
Separate Input to Set the Common-Mode Output Voltage
Low Distortion
68 dB SFDR @ 5 MHz 200 Load
Low Power 7.5 mA @ 3 V
Power Supply Range +2.7 V to 65 V
AD8131 Typical Application
Video Line Driver
Digital Line Driver
Low Power Differential ADC Driver
Differential In/Out Level Shifting
Single-Ended Input to Differential Output Driver
Digital Line Driver
Low Power Differential ADC Driver
Differential In/Out Level Shifting
Single-Ended Input to Differential Output Driver

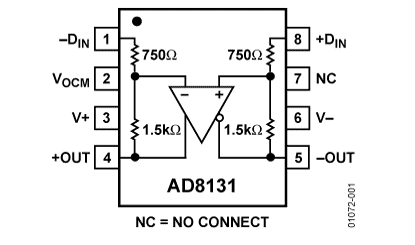

AD8131 Connection Diagram
AD8131
