MFG:Analog Devices Inc Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Descriptions: IC DRIVER DIFF HI SPEED 24SOIC
1000
8.05220
8052.20

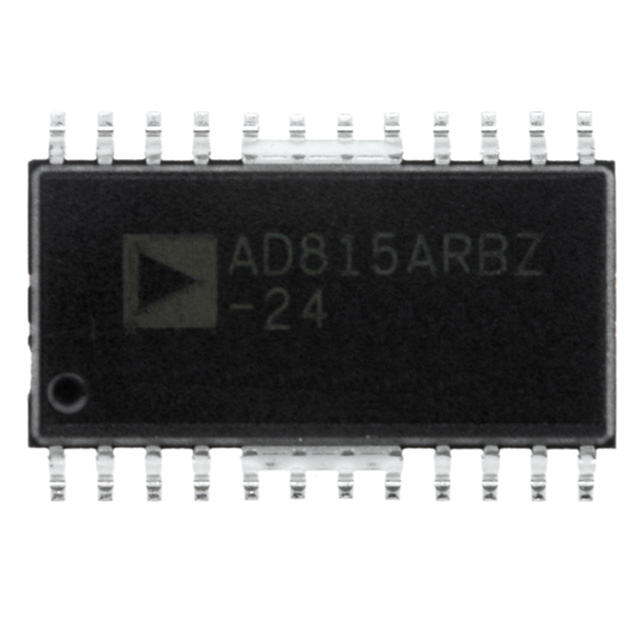

| Technical/Catalog Information | AD815ARBZ-24-REEL |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tape & Reel (TR) |
| Amplifier Type | Differential |
| Number of Circuits | 2 - Dual |
| Package / Case | 24-SOIC (7.5mm Width) Fused Leads |
| Slew Rate | 900 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 30mA |
| Current - Output / Channel | 500mA |
| Voltage - Supply, Single/Dual (±) | 10 V ~ 36 V, ±5 V ~ 18 V |
| Output Type | - |
| -3db Bandwidth | 120MHz |
| Current - Input Bias | 10A |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 10000V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AD815ARBZ 24 REEL AD815ARBZ24REEL |
AD800
PDF/DataSheet Download
IC DRIVER DIFF HI SPEED 24SOIC
IC DIFF DVR HI-OUTPUT 24-SOIC
The AD815 consists of two high speed amplifiers capable of supplying a minimum of 500 mA. They are typically configured as a differential driver enabling an output signal of 40 V p-p on 15 V supplies. This can be increased further with the use of a coupling...
