MFG:Analog Devices Inc (VA) Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc (VA)
Descriptions: IC VIDEO MUX 4:1 14-SOIC
| Technical/Catalog Information | AD8184AR-REEL7 |
| Vendor | Analog Devices Inc (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Video Multiplexer |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply, Single/Dual (±) | ±4 V ~ 6 V |
| Circuit | 1 x 4:1 |
| On-State Resistance | 33 Ohm |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Packaging | Digi-Reel? |
| Current - Supply | 2.1mA |
| Operating Temperature | -40°C ~ 85°C |
| Function | Video Multiplexer |
| Drawing Number | * |
| RoHS Status | RoHS Non-Compliant |
| Other Names | AD8184AR REEL7 AD8184ARREEL7 AD8184AR REEL7DKR ND AD8184ARREEL7DKRND AD8184AR-REEL7DKR |
AD800
PDF/DataSheet Download
IC VIDEO MUX 4:1 14-SOIC T/R
IC VIDEO MUX 4:1 700MHZ 14-SOIC
IC MUX VIDEO 4:1 HI SPD 14-DIP

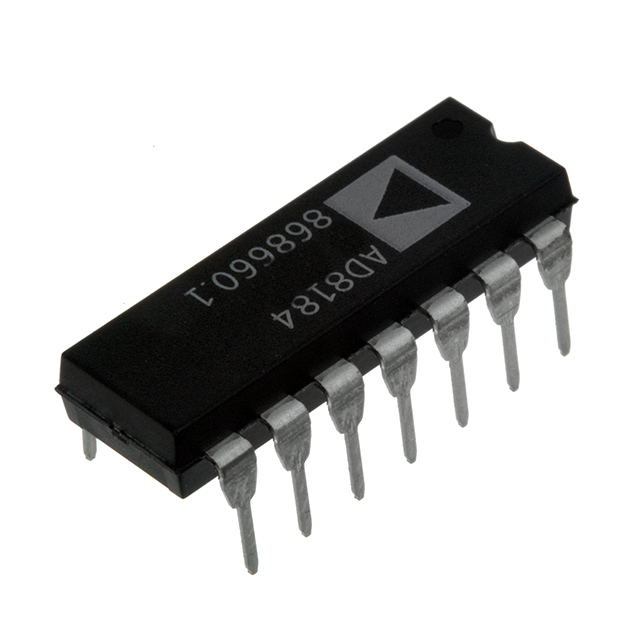

IC VIDEO MUX 4:1 14-DIP
The AD8184 is a high speed 4-to-1 multiplexer. It offers 3 dB signal bandwidth of 700 MHz along with a slew rate of 750 V/s. With 95 dB of crosstalk and 115 dB isolation, it is useful in many high speed applications. The differential gain and differential p...
