Purchase AD8197A, In-stock AD8197A From SeekIC.
Part Number: AD8197A
Description: The AD8197A is an HDMI™/DVI switch featuring equalized TMDS® inputs and pre-emphasized TMDS outputs, ideal fo...
- Table of contents:
AD8197A
-
Suppliers
DataSheet
General Description
AD8197A General Description
The AD8197A is an HDMI™/DVI switch featuring equalized TMDS® inputs and pre-emphasized TMDS outputs, ideal for systems with long cable runs. Outputs can be set to a high impedance state to reduce the power dissipation and/or to allow the construction of larger arrays using the wire-OR technique.
The AD8197A is provided in a 100-lead LQFP, Pb-free, surface-mount package, specified to operate over the −40°C to +85°C temperature range.
AD8197A Maximum Ratings
| Parameter |
Rating |
| AVCC to AVEE DVCC to DVEE DVEE to AVEE VTTI VTTO AMUXVCC Internal Power Dissipation High Speed Input Voltage High Speed Differential Input Voltage Low Speed Input Voltage I2C and Parallel Logic Input Voltage Storage Temperature Range Operating Temperature Range Junction Temperature |
3.7 V |
AD8197A Features
4 inputs, 1 output HDMI/DVI link
Enables HDMI 1.3-compliant receiver
Pin-to-pin compatible with the AD8191A
4 TMDS channels per link
Supports 250 Mbps to 2.25 Gbps data rates
Supports 25 MHz to 225 MHz pixel clocks
Equalized inputs for operation with long HDMI cables
(20 meters at 2.25 Gbps)
Fully buffered unidirectional inputs/outputs
Globally switchable, 50 on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)
4 auxiliary channels per link
Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals
Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
2 AD8197A devices support HDMI/DVI dual-link
Standards compatible: HDMI receiver, HDCP, DVI
Serial (I2C slave) and parallel control interface
100-lead, 14 mm * 14 mm LQFP, Pb-free package
Enables HDMI 1.3-compliant receiver
Pin-to-pin compatible with the AD8191A
4 TMDS channels per link
Supports 250 Mbps to 2.25 Gbps data rates
Supports 25 MHz to 225 MHz pixel clocks
Equalized inputs for operation with long HDMI cables
(20 meters at 2.25 Gbps)
Fully buffered unidirectional inputs/outputs
Globally switchable, 50 on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)
4 auxiliary channels per link
Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals
Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
2 AD8197A devices support HDMI/DVI dual-link
Standards compatible: HDMI receiver, HDCP, DVI
Serial (I2C slave) and parallel control interface
100-lead, 14 mm * 14 mm LQFP, Pb-free package
AD8197A Typical Application
Multiple input displays
Projectors
A/V receivers
Set-top boxes
Advanced television (HDTV) sets
Projectors
A/V receivers
Set-top boxes
Advanced television (HDTV) sets
AD8197A-EVALZ
PDF/DataSheet Download
- Datasheet: AD8197A-EVALZ
- File Size: 790240 KB
- Manufacturer: AD
- Click here to Download
- ·AD800
- AD [Analog Devices]
- Clock Recovery and Data Retiming Phase-Locked Loop
- 259498 KB
- ·AD8000
- AD
- Clock Recovery and Data Retiming Phase-Locked Loop
- 1486848 KB
- ·AD8000YRDZ
- AD
- 1.5 GHz Ultrahigh Speed Op Amp
- 538404 KB
- ·AD8000YRDZ-REEL
- AD
- 1.5 GHz Ultrahigh Speed Op Amp
- 538404 KB
- ·AD8000YRDZ-REEL7
- AD
- L-Band GaAs Power FET
- 538404 KB
- ·AD8001
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
- ·AD8001ACHIPS
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
- ·AD8001AN
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
AD8197A Relative Products
AD8196-EVAL
BOARD EVALUATION FOR AD8196
AD8196ACPZ-RL
IC SWITCH DVI/HDMI 2:1 56-LFCSP
AD8196ACPZ-R7
IC SWITCH DVI/HDMI 2:1 56-LFCSP

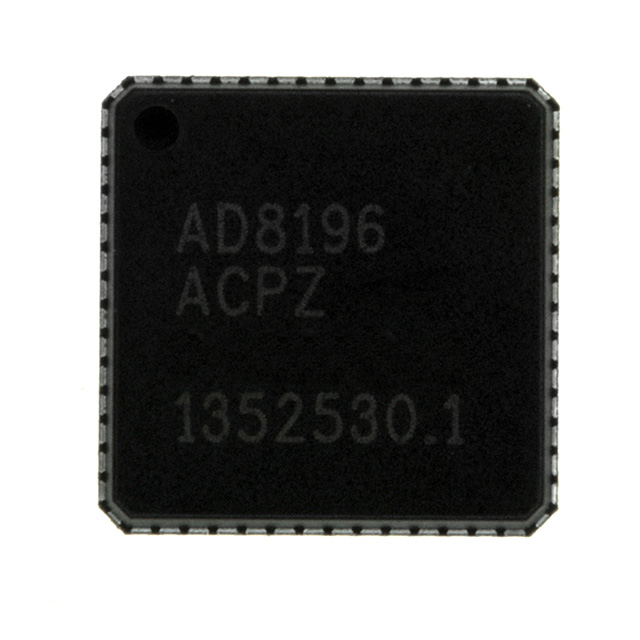

AD8196ACPZ
