Purchase AD8197B, In-stock AD8197B From SeekIC.
MFG:ADI D/C:09
Part Number: AD8197B
MFG: ADI
D/C: 09
Description: The AD8197B is an HDMI™/DVI switch featuring equalized TMDS® inputs and pre-emphasized TMDS ...
- Table of contents:
AD8197B
-
Suppliers
DataSheet
General Description

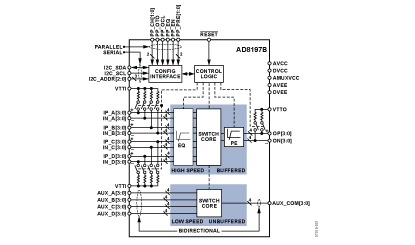

AD8197B General Description
The AD8197B is an HDMI™/DVI switch featuring equalized TMDS® inputs and pre-emphasized TMDS outputs, ideal for systems with long cable runs. The AD8197B offers individual control of the on/off state of the TMDS input termination resistors via I2C® control. Outputs can be set to a high impedance state to reduce the power dissipation and/or to allow the construction of larger arrays using the wire-OR technique.
The AD8197B is provided in a 100-lead LQFP, Pb-free, surface-mount package, specified to operate over the −40°C to +85°C temperature range.
AD8197B Maximum Ratings
| Parameter |
Rating |
| AVCC to AVEE DVCC to DVEE DVEE to AVEE VTTI VTTO AMUXVCC Internal Power Dissipation High Speed Input Voltage High Speed Differential Input Voltage Low Speed Input Voltage I2C and Parallel Logic Input Voltage Storage Temperature Range Operating Temperature Range Junction Temperature |
3.7 V 3.7 V ±0.3 V AVCC + 0.6 V AVCC + 0.6 V 5.5 V 2.2 W AVCC − 1.4 V < VIN < AVCC + 0.6 V 2.0 V DVEE − 0.3 V < VIN < AMUXVCC + 0.6 V DVEE − 0.3 V < VIN < DVCC + 0.6 V −65°C to +125°C −40°C to +85°C 150°C |
AD8197B Features
4 inputs, 1 output HDMI/DVI links
Enables HDMI 1.3-compliant receiver
Pin-to-pin compatible with the AD8197A
4 TMDS channels per link
Supports 250 Mbps to 2.25 Gbps data rates
Supports 25 MHz to 225 MHz pixel clocks
Equalized inputs allow use of long HDMI cables (20 meters at 2.25 Gbps)
Fully buffered unidirectional inputs/outputs
Per input switchable, 50 on-chip terminations
Switchable output 50 on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)
4 auxiliary channels per link
Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals
Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
Two AD8197Bs support HDMI/DVI dual link
Standards compatible: HDMI receiver, HDCP, DVI
Serial (I2C slave) and parallel control interface
100-lead, 14 mm * 14 mm LQFP, Pb-free package
Enables HDMI 1.3-compliant receiver
Pin-to-pin compatible with the AD8197A
4 TMDS channels per link
Supports 250 Mbps to 2.25 Gbps data rates
Supports 25 MHz to 225 MHz pixel clocks
Equalized inputs allow use of long HDMI cables (20 meters at 2.25 Gbps)
Fully buffered unidirectional inputs/outputs
Per input switchable, 50 on-chip terminations
Switchable output 50 on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)
4 auxiliary channels per link
Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals
Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
Two AD8197Bs support HDMI/DVI dual link
Standards compatible: HDMI receiver, HDCP, DVI
Serial (I2C slave) and parallel control interface
100-lead, 14 mm * 14 mm LQFP, Pb-free package
AD8197B Typical Application
Multiple input displays
Projectors
A/V receivers
Set-top boxes
Advanced television (HDTV) sets
Projectors
A/V receivers
Set-top boxes
Advanced television (HDTV) sets
