General Description
AD8202 General Description
The AD8202 is a single-supply difference amplifier for amplifying and low-pass filtering small differential voltages in the presence of a large common-mode voltage (CMV). The input CMV range
AD8202 Maximum Ratings
| Single/Dual Supply | Single |
| Voltage Supply (Vmax) | +12V |
| Gain Setting Method | fixed |
| Gain Range (min to max) | 20 |
| Bandwidth G=10 (kHz typ) | 50kHz |
| CMRR (dB) | 82dB |
| Vnoise RTI 1-10 Hz Vp-p | 10V p-p |
| Temperature Range | -40 to +125 |
| Gain Error (%) max | ±0.3% |
| Supply Current | 0.25mA |
| Package | Die,SOIC,SOP |
| Vosi (V) | 1000V |

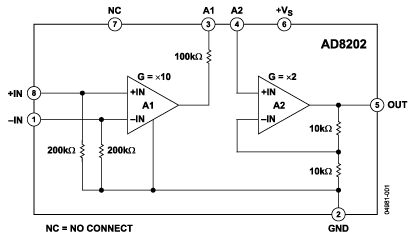

AD8202 Connection Diagram
AD8202
