General Description
AD824 General Description
The AD824 is a quad, FET input, single supply amplifier, fea- turing rail-to-rail outputs. The combination of FET inputs and rail-to-rail outputs makes the AD824 useful in a wide variety of low voltage applications where low input current is a primary consideration.
The AD824 is guaranteed to operate from a 3V single supply up to ±15 volt dual supplies.
AD824 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . VS 0.2 V to +VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Short Circuit Duration to GND . . . . .. . . . . . . . . Indefinite
Storage Temperature Range
N, R Package. . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD824A, B . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Junction Temperature Range
N, R Package . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . +300°C
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . VS 0.2 V to +VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Short Circuit Duration to GND . . . . .. . . . . . . . . Indefinite
Storage Temperature Range
N, R Package. . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD824A, B . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +85°C
Junction Temperature Range
N, R Package . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . +300°C
AD824 Features
Single Supply Operation: 3 V to 30 V
Very Low Input Bias Current: 2 pA
Wide Input Voltage Range
Rail-to-Rail Output Swing
Low Supply Current: 500 A/Amp
Wide Bandwidth: 2 MHz
Slew Rate: 2 V/s
No Phase Reversal
Very Low Input Bias Current: 2 pA
Wide Input Voltage Range
Rail-to-Rail Output Swing
Low Supply Current: 500 A/Amp
Wide Bandwidth: 2 MHz
Slew Rate: 2 V/s
No Phase Reversal
AD824 Typical Application
Photo Diode Preamplifier
Battery Powered Instrumentation
Power Supply Control and Protection
Medical Instrumentation
Remote Sensors
Low Voltage Strain Gage Amplifiers
DAC Output Amplifier
Battery Powered Instrumentation
Power Supply Control and Protection
Medical Instrumentation
Remote Sensors
Low Voltage Strain Gage Amplifiers
DAC Output Amplifier

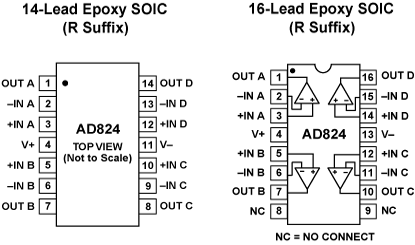

AD824 Connection Diagram
AD824
