Purchase AD8324, In-stock AD8324 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8324
MFG: ADI
D/C: 09
Description: The AD83241 is a low cost amplifier designed for coaxial line driving. Th...
- Table of contents:
AD8324
-
Suppliers
DataSheet
General Description
AD8324 General Description
The AD83241 is a low cost amplifier designed for coaxial line driving. The features and specifications make the AD8324 deally suited for DOCSIS 2.0 and Euro-DOCSIS applications. The gain of the AD8324 is digitally controlled. An 8-bit serial word determines the desired output gain over a 59 dB range, esulting in gain changes of 1 dB/LSB.
The AD8324 accepts a differential or single-ended input signal. The output is specified for driving a 75 load through a 1:1 transformer.
Distortion performance of 54 dBc is achieved with an output level up to 61 dBmV at 65 MHz bandwidth.
This device has a sleep mode function that reduces the quies-cent current to 30 A and a full power-down function that reduces power-down current to 2.5 mA.
The AD8324 is packaged in a low cost 20-lead LFCSP package and a 20-lead QSOP package. The AD8324 operates from a single 3.3 V supply.
AD8324 Maximum Ratings
| Parameter | Rating |
| Supply Voltage VCC Input Voltage VIN+, VIN DATEN , SDATA, CLK, SLEEP, TXEN Internal Power Dissipation QSOP, LFCSP Operating Temperature Range LFCSP QSOP Storage Temperature Range Lead Temperature (Soldering, 60 sec) |
3.63 V 1.5 V p-p 0.5 V to +3.63 V 776 mW 40 to +85 25 to +70 65 to +150 300 |
AD8324 Features
Supports DOCSIS 2.0 and Euro-DOCSIS standards for reverse path transmission systems
Gain programmable in 1 dB steps over a 59 dB range Low distortion at 61 dBmV output:
59 dBc SFDR at 21 MHz
54 dBc SFDR at 65 MHz
Output noise level @ minimum gain 1.3 nV/Hz
Maintains 75 ? output impedance in TX-enable and Transmit-disable condition
Upper bandwidth: 100 MHz (full gain range) 3.3 V supply operation
Supports SPI(R) interfaces
Gain programmable in 1 dB steps over a 59 dB range Low distortion at 61 dBmV output:
59 dBc SFDR at 21 MHz
54 dBc SFDR at 65 MHz
Output noise level @ minimum gain 1.3 nV/Hz
Maintains 75 ? output impedance in TX-enable and Transmit-disable condition
Upper bandwidth: 100 MHz (full gain range) 3.3 V supply operation
Supports SPI(R) interfaces
AD8324 Typical Application
DOCSIS 2.0 and Euro-DOCSIS cable modems
CATV set-top boxes
CATV telephony modems
Coaxial and twisted pair line drivers
CATV set-top boxes
CATV telephony modems
Coaxial and twisted pair line drivers

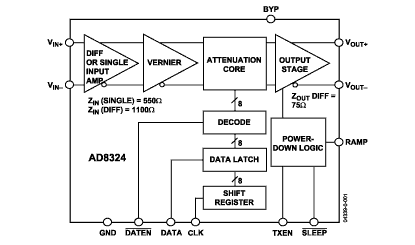

AD8324 Connection Diagram
AD8324
PDF/DataSheet Download
- Datasheet: AD8324
- File Size: 529084 KB
- Manufacturer:
- Click here to Download
- ·AD800
- AD [Analog Devices]
- Clock Recovery and Data Retiming Phase-Locked Loop
- 259498 KB
- ·AD8000
- AD
- Clock Recovery and Data Retiming Phase-Locked Loop
- 1486848 KB
- ·AD8000YRDZ
- AD
- 1.5 GHz Ultrahigh Speed Op Amp
- 538404 KB
- ·AD8000YRDZ-REEL
- AD
- 1.5 GHz Ultrahigh Speed Op Amp
- 538404 KB
- ·AD8000YRDZ-REEL7
- AD
- L-Band GaAs Power FET
- 538404 KB
- ·AD8001
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
- ·AD8001ACHIPS
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
- ·AD8001AN
- AD [Analog Devices]
- 800 MHz, 50 mW Current Feedback Amplifier
- 228280 KB
AD8324 Relative Products
AD8323-EVAL
BOARD EVAL FOR AD8323
AD8323ARUZ-REEL
IC LN DVR CATV FINE-STEP 28TSSOP
AD8323ARUZ
IC LN DVR CATV FINE-STEP 28TSSOP
AD8323ARU-REEL
IC LN DVR CATV FINE-STEP 28TSSOP

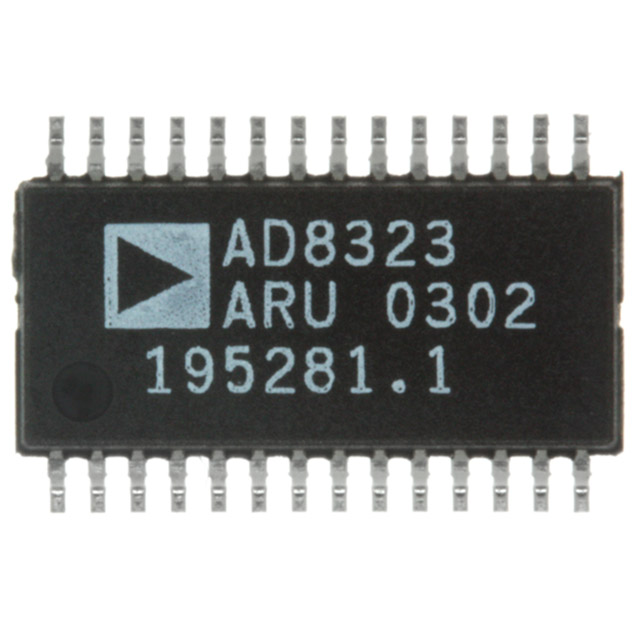

AD8323ARU
