AD8341

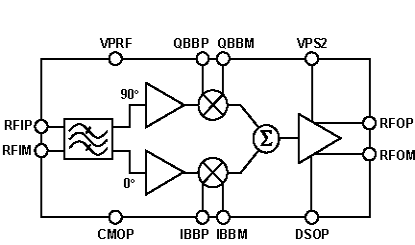

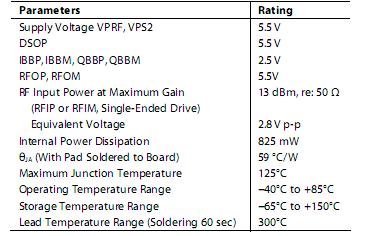

The AD8341 vector modulator performs arbitrary amplitude  and phase modulation of an RF signal. Since the RF signal path  is linear, the original modulation is preserved. This part can be  used as a general-purpose RF modulator, a variable attenuator/phase shifter, or a remodulator. The amplitude can be
controlled from a maximum of −4.5 dB to less than −34.5 dB,  and the phase can be shifted continuously over the entire 360°  range. For maximum gain, the AD8341 delivers an OP1dB of  8.5 dBm, an OIP3 of 17.5 dBm, and an output noise floor of  −150.5 dBm/Hz, independent of phase. It operates over a
frequency range of 1.5 GHz to 2.4 GHz.

The baseband inputs in Cartesian I and Q format control the  amplitude and phase modulation imposed on the RF input  signal. Both I and Q inputs are dc-coupled with a ±500 mV  differential full-scale range. The maximum modulation bandwidth is 230 MHz, which can be reduced by adding external  capacitors to limit the noise bandwidth on the control lines.

Both the RF inputs and outputs can be used differentially or  single-ended and must be ac-coupled. The RF input and output  impedances are nominally 50 Ω over the operating frequency  range. The DSOP pin allows the output stage to be disabled  quickly in order to protect subsequent stages from overdrive.  The AD8341 operates off supply voltages from 4.75 V to 5.25 V  while consuming approximately 125 mA.
