Description: The AD8349 is a silicon, monolithic, RF quadrature modulator that is designed for use from 700 MHz to 2700 MHz...
- Table of contents:
AD8349
-
Suppliers
DataSheet
General Description
AD8349 General Description
The AD8349 is a silicon, monolithic, RF quadrature modulator that is designed for use from 700 MHz to 2700 MHz. Its excellent phase accuracy and amplitude balance enable high performance direct RF modulation for communication systems.
The differential LO input signal is buffered, and then split into an in-phase (I) signal and a quadrature-phase (Q) signal using a polyphase phase splitter. These two LO signals are further buffered and then mixed with the corresponding I channel and Q channel baseband signals in two Gilbert cell mixers. The mixers' outputs are then summed together in the output amplifier. The output amplifier is designed to drive 50 Ω loads.
AD8349 Maximum Ratings
Parameter Rating
Supply Voltage VPOS 5.5 V
IBBP, IBBN, QBBP, QBBN 0 V, 2.5 V
LOIP and LOIN 10 dBm
Internal Power Dissipation 800 mW
JA (Exposed Paddle Soldered Down) 30°C/W
Maximum Junction Temperature 125°C
Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Supply Voltage VPOS 5.5 V
IBBP, IBBN, QBBP, QBBN 0 V, 2.5 V
LOIP and LOIN 10 dBm
Internal Power Dissipation 800 mW
JA (Exposed Paddle Soldered Down) 30°C/W
Maximum Junction Temperature 125°C
Operating Temperature Range −40°C to +85°C
Storage Temperature Range −65°C to +150°C
AD8349 Features
Output frequency range: 700 MHz to 2700 MHz
Modulation bandwidth: dc to 160 MHz (large signal BW)
1 dB output compression: 5.6 dBm @ 2140 MHz
Output disable function: output below 50 dBm in < 50 ns
Noise floor: 156 dBm/Hz
Phase quadrature error: 0.3 degrees @ 2140 MHz
Amplitude balance: 0.1 dB
Single supply: 4.75 V to 5.25 V
Pin compatible with AD8345/AD8346
16-lead exposed-paddle TSSOP package
Modulation bandwidth: dc to 160 MHz (large signal BW)
1 dB output compression: 5.6 dBm @ 2140 MHz
Output disable function: output below 50 dBm in < 50 ns
Noise floor: 156 dBm/Hz
Phase quadrature error: 0.3 degrees @ 2140 MHz
Amplitude balance: 0.1 dB
Single supply: 4.75 V to 5.25 V
Pin compatible with AD8345/AD8346
16-lead exposed-paddle TSSOP package
AD8349 Typical Application
Cellular/PCS communication systems infrastructure
WCDMA/CDMA2000/PCS/GSM/EDGE
Wireless LAN/wireless local loop
LMDS/broadband wireless access systems
WCDMA/CDMA2000/PCS/GSM/EDGE
Wireless LAN/wireless local loop
LMDS/broadband wireless access systems

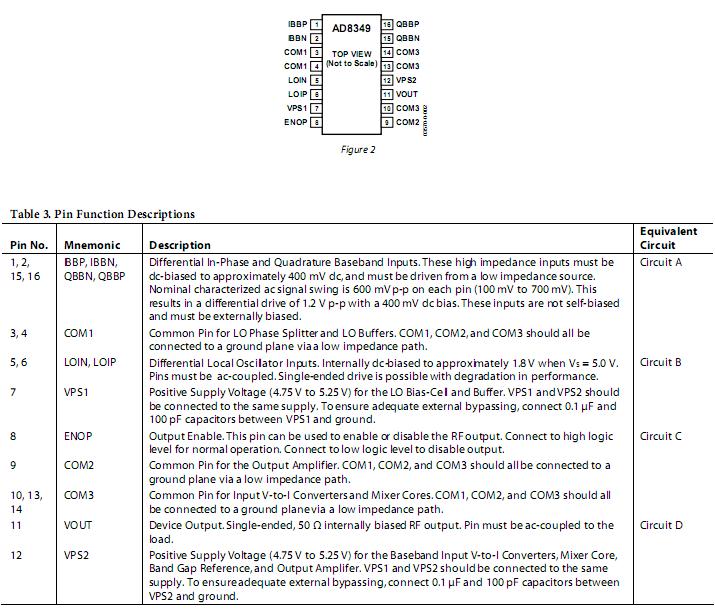

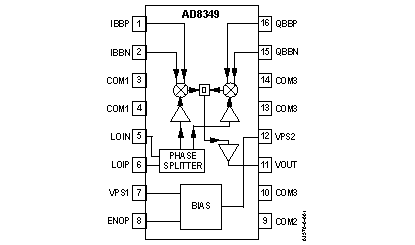

AD8349 Connection Diagram
AD8349
