Part Number: AD8350
MFG: ADI
D/C: 09
Description: The AD8350 series are high performance fully-differential amplifiers useful in RF and IF circuits up to 1000 MHz. The a...
- Table of contents:
AD8350
-
Suppliers
DataSheet
General Description
AD8350 General Description
The AD8350 series are high performance fully-differential amplifiers useful in RF and IF circuits up to 1000 MHz. The amplifier has excellent noise figure of 5.9 dB at 250 MHz. It offers a high output third order intercept (OIP3) of +22 dBm at 250 MHz. Gain versions of 15 dB and 20 dB are offered.
The AD8350 is designed to meet the demanding performance requirements of communications transceiver applications. It enables a high dynamic range differential signal chain, with exceptional linearity and increased common-mode rejection. The device can be used as a general purpose gain block, an A-to-D driver, and high speed data interface driver, among other functions. The AD8350 input can also be used as a singleended-to-differential converter.
The amplifier can be operated down to +5 V with an OIP3 of +22 dBm at 250 MHz and slightly reduced distortion performance. The wide bandwidth, high dynamic range and temperature stability make this product ideal for the various RF and IF frequencies required in cellular, CATV, broadband, instrumentation and other applications.
The AD8350 is offered in an 8-lead single SOIC package. It operates from +5 V and +10 V power supplies, drawing 28 mA typical. The AD8350 offers a power enable function for powersensitive applications. The AD8350 is fabricated using Analog Devices' proprietary high speed complementary bipolar process. The device is available in the industrial (40°C to +85°C) temperature range.
AD8350 Maximum Ratings
Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +11 V
Input Power Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +8 dBm
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mW
qJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+300°C
Input Power Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +8 dBm
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mW
qJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+300°C
AD8350 Features
High Dynamic Range
Output IP3: +22 dBm: Re 50 V @ 250 MHz
Low Noise Figure: 5.9 dB @ 250 MHz
Two Gain Versions:
AD8350-15 15 dB
AD8350-20 20 dB
3 dB Bandwidth: 1.0 GHz
Single Supply Operation: +5 V to +10 V
Supply Current: 28 mA
Input/Output Impedance: 200 V
Single-Ended or Differential Input Drive
8-Lead SOIC Package
Output IP3: +22 dBm: Re 50 V @ 250 MHz
Low Noise Figure: 5.9 dB @ 250 MHz
Two Gain Versions:
AD8350-15 15 dB
AD8350-20 20 dB
3 dB Bandwidth: 1.0 GHz
Single Supply Operation: +5 V to +10 V
Supply Current: 28 mA
Input/Output Impedance: 200 V
Single-Ended or Differential Input Drive
8-Lead SOIC Package
AD8350 Typical Application
Cellular Base Stations
Communications Receivers
RF/IF Gain Block
Differential A-to-D Driver
SAW Filter Interface
Single-Ended to Differential Conversion
High Performance Video
High Speed Data Transmission

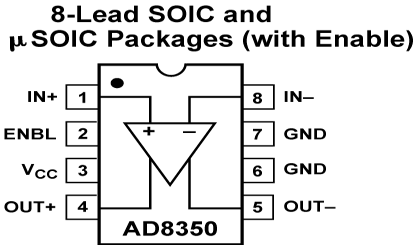

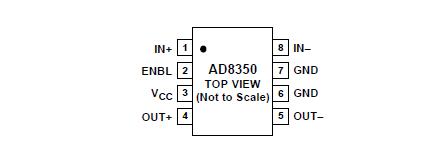

AD8350 Connection Diagram
AD8350
