General Description
AD8351 Maximum Ratings
Supply Voltage VPOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
PWUP Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....VPOS
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . .320 mW
JA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . .125
Operating Temperature Range . . . . . . . . . . . . .40 to +85
Storage Temperature Range . . . . . . . . . . . . . 65 to +150
Lead Temperature Range (Soldering 60 sec) . . . . . . . . . .300
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
AD8351 Features
`3 dB Bandwidth of 2.2 GHz for AV = 12 dB
`Single Resistor Programmable Gain 0 dB AV 26 dB
`Differential Interface
`Low Noise Input Stage 2.7 nV/Hz @ AV = 10 dB
`Low Harmonic Distortion
`79 dBc Second @ 70 MHz
`81 dBc Third @ 70 MHz
`OIP3 of 31 dBm @ 70 MHz
`Single-Supply Operation: 3 V to 5.5 V
`Low Power Dissipation: 28 mA @ 5 V
`Adjustable Output Common-Mode Voltage
`Fast Settling and Overdrive Recovery
`Slew Rate of 13,000 V/s
`Power-Down Capability
`10-Lead MSOP Package
`Single Resistor Programmable Gain 0 dB AV 26 dB
`Differential Interface
`Low Noise Input Stage 2.7 nV/Hz @ AV = 10 dB
`Low Harmonic Distortion
`79 dBc Second @ 70 MHz
`81 dBc Third @ 70 MHz
`OIP3 of 31 dBm @ 70 MHz
`Single-Supply Operation: 3 V to 5.5 V
`Low Power Dissipation: 28 mA @ 5 V
`Adjustable Output Common-Mode Voltage
`Fast Settling and Overdrive Recovery
`Slew Rate of 13,000 V/s
`Power-Down Capability
`10-Lead MSOP Package
AD8351 Typical Application
·Differential ADC Drivers
·Single-Ended-to-Differential Conversion
·IF Sampling Receivers
·RF/IF Gain Blocks
·SAW Filter Interfacing
·Single-Ended-to-Differential Conversion
·IF Sampling Receivers
·RF/IF Gain Blocks
·SAW Filter Interfacing

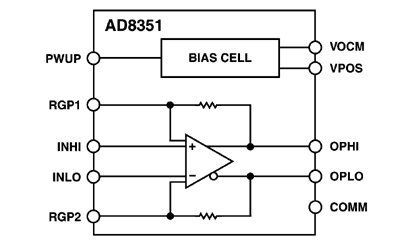

AD8351 Connection Diagram
