Part Number: AD8397
MFG: ADI
D/C: 09
Description: The AD8397 has two voltage feedback operational amplifiers capable of driving heavy loads with excelle...
- Table of contents:
AD8397
-
Suppliers
DataSheet
General Description
AD8397 General Description
The AD8397 has two voltage feedback operational amplifiers capable of driving heavy loads with excellent linearity. The common-emitter, rail-to-rail output stage surpasses the output voltage capability of typical emitter-follower output stages and can swing to within 0.5 V of either rail while driving a 25 Ω load. The low distortion, high output current, and wide output dynamic range make the AD8397 ideal for applications that require a large signal swing into a heavy load.
Fabricated with ADI's high speed eXtra Fast Complementary Bipolar High Voltage (XFCB-HV) process, the high bandwidth and fast slew rate of the AD8397 keep distortion to a minimum while also dissipating minimum power. The AD8397 is available in a standard 8-lead SOIC package and, for higher power appli-cations, a thermally enhanced 8-lead SOIC EPAD package. Both packages can operate from −40°C to +85°C.
AD8397 Maximum Ratings
| Parameters | Ratings |
| Supply Voltage Power Dissipation1 Storage Temperature Operating Temperature Range Lead Temperature Range (Soldering 10 sec) Junction Temperature |
26.4 V See Figure 4 −65°C to +125°C −40°C to +85°C 300°C 150°C |
AD8397 Features
Dual operational amplifier
Voltage feedback
Wide supply range: from 3 V to 24 V
Rail-to-rail output
Output swing to within 0.5 V of supply rails
High linear output current
310 mA peak into 32 Ω on ±12 V supplies while maintaining
−80 dBc SFDR
Low noise
4.5 nV/Hz voltage noise density @ 100 kHz
1.5 pA/Hz current noise density @ 100 kHz
High speed
69 MHz bandwidth (G = 1, −3 dB)
53 V/µs slew rate (RLOAD = 25 Ω)
Voltage feedback
Wide supply range: from 3 V to 24 V
Rail-to-rail output
Output swing to within 0.5 V of supply rails
High linear output current
310 mA peak into 32 Ω on ±12 V supplies while maintaining
−80 dBc SFDR
Low noise
4.5 nV/Hz voltage noise density @ 100 kHz
1.5 pA/Hz current noise density @ 100 kHz
High speed
69 MHz bandwidth (G = 1, −3 dB)
53 V/µs slew rate (RLOAD = 25 Ω)
AD8397 Typical Application
Twisted-pair line drivers
Audio applications
General-purpose high current amplifiers
Audio applications
General-purpose high current amplifiers

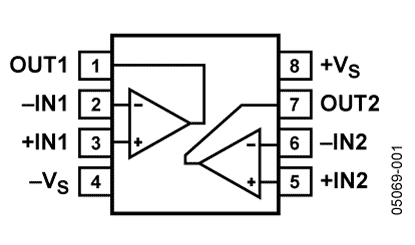

AD8397 Connection Diagram
AD8397
