Part Number: AD8502



MFG: ADI



D/C: 09

Description: The AD8502/AD8504 are low power, precision CMOS operationalamplifiers featuring a maximum supply current of 1 A per amplifier. The AD8502/...


Urgent Purchase

AD8502 General Description


The AD8502/AD8504 are low power, precision CMOS operationalamplifiers featuring a maximum supply current of 1 A per amplifier. The AD8502/AD8504 have a maximum offset voltage of 3 mV and a typical

AD8502 Maximum Ratings

-3dB Bandwidth 7kHz
Slew Rate 0.0040V/s
Vos 500V
Ib 1pA
Input Noise (nV/rtHz) 190nV/rtHz
Vcc-Vee Supply (V) 1.8 to 5.5
Iq per Amplifier (max) 1A
# OpAmps per Pkg 2
Operating Temp Range -40 to +125
Packages SOT-23

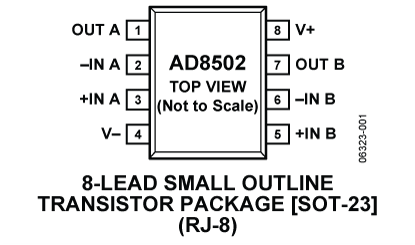

AD8502 Connection Diagram

AD8502 Connection Diagram
